Measuring system PK 29-K001

Article description

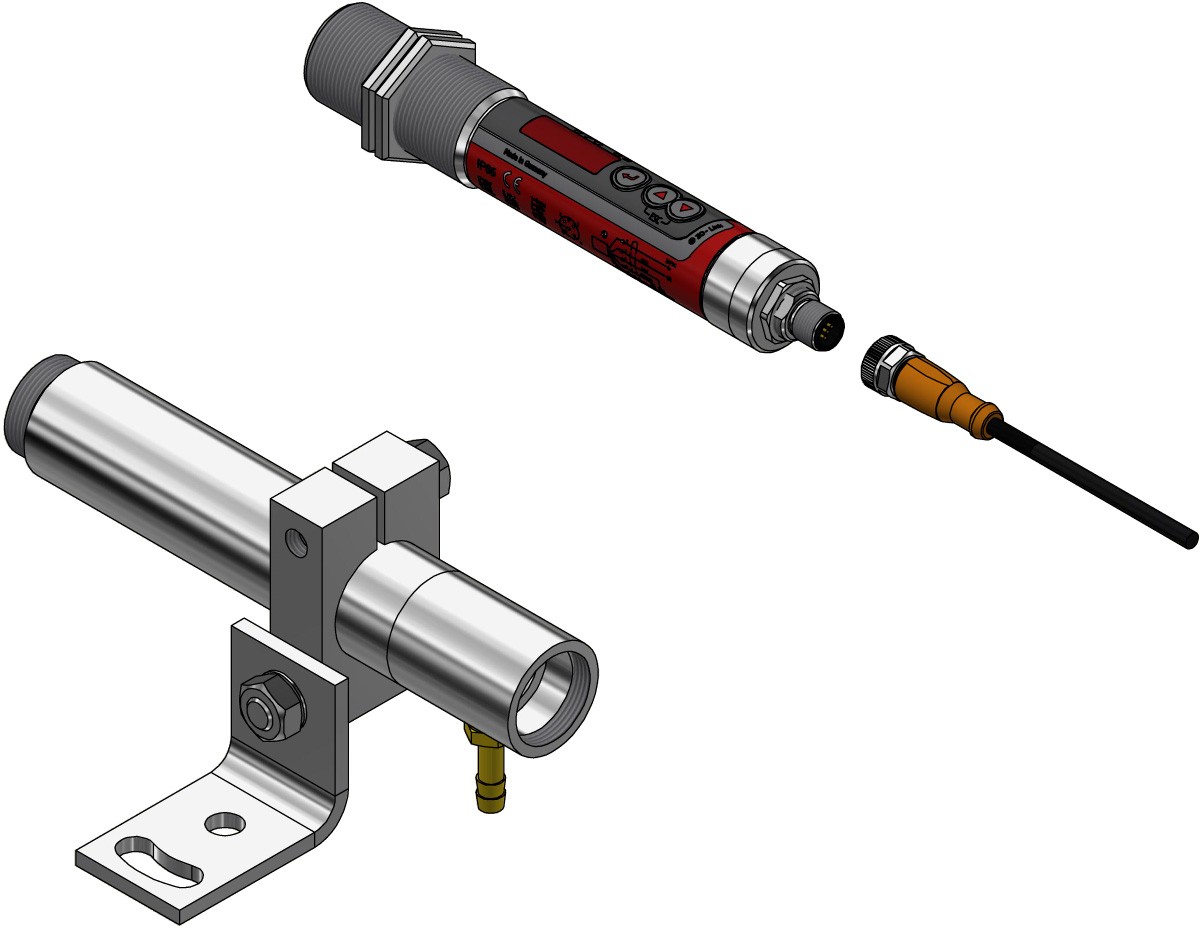

Measuring system consisting of:

Special features:

Compact infrared thermometer with bright LED display and control panel
broadband anti-reflective precision lens
analogue output and IO link interface
For measuring metals at low temperatures
Special blocking filter to block interfering radiation
Mounting fitting with flow-optimized air flow to avoid contaminations with minimal air consumption
Flexibly adjustable holding device

Measuring system PK 29-K001

You can request this article from us
Quantity:

Version	CellaTemp PK 29-K001
Measuring range	180 - 800 °C
Target size	7 mm
Focus distance	0,3 m
Shape of the measuring field	round
Measuring principle	one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Measuring system PK 29-K001

Technical Data

Measurement parameters

Measuring range	150 - 800 °C
Sensor	Photo diode
Spectral range	1.8 - 2.2 µm
Response time t90	≤ 2 ms (T > 300 °C) ≤ 15 ms (T > 200 °C) ≤ 45 ms (T > 150 °C)
Measurement uncertainty	0.3 % of temp. reading [°C] plus 4.0 K
Repeatability	2 K
Temperature coefficient	0.25 K/K (T < 500 °C) 0.05 %/K (T > 500 °C)
Resolution current output	0.1 K + 0.005 % of selected measuring span
Resolution interface	0.1 K
Resolution display	1 K

Electrical parameters

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Switching output	2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input	10 - 34 V DC (acc. to IEC 61131-2)
Interface	IO-Link V1.1.3
Power supply	18 - 32 V DC
Current consumption	≤ 50 mA at 24 V DC

Features

Display	4-digit LED display red, digit-height 8 mm
Status display	3 x LED
Control elements	3 buttons

General parameters

Connection	M12 thread 5-pin connection (A-coding)
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)
Dimension	Ø 30 x 210 mm (without plug)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.4 kg

Adjustable parameters

Parameters

Analog output 0/4 - 20 mA
Scaling of the analogue output
Emissivity via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal	Signal display at an internal temperature > 75 °C
Service function	Simulation of a measured value
Diagnostic function	Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection	for power supply, analogue output and switching output

Scope of delivery

Infrared thermometer CellaTemp PK
Manual (short)
2 fixing nuts

Measuring system PK 29-K001

Downloads

Brochure CellaTemp PK PKF PKL

Brochure Flyer IO-Link

Manual CellaTemp PKx IO-Link

Quick guide CellaTemp PKxx IO-Link

Drawing PK 29-K001

EAC Deklaration PK-PA-PT

Measuring system PK 29-K001

Measuring field calculator

Measuring distance	Measuring field diameter
0.00 mm	21.40 mm
12.00 mm	20.82 mm
24.00 mm	20.25 mm
36.00 mm	19.67 mm
48.00 mm	19.10 mm
60.00 mm	18.52 mm
72.00 mm	17.94 mm
84.00 mm	17.37 mm
96.00 mm	16.79 mm
108.00 mm	16.22 mm
120.00 mm	15.64 mm
132.00 mm	15.06 mm
144.00 mm	14.49 mm
156.00 mm	13.91 mm
168.00 mm	13.34 mm
180.00 mm	12.76 mm
192.00 mm	12.18 mm
204.00 mm	11.61 mm
216.00 mm	11.03 mm
228.00 mm	10.46 mm
240.00 mm	9.88 mm
252.00 mm	9.30 mm
264.00 mm	8.73 mm
276.00 mm	8.15 mm
288.00 mm	7.58 mm
300.00 mm	7.00 mm
