Pyrometers for filaments and glow strips
Application report for temperature measurement of small objects
Application report filaments

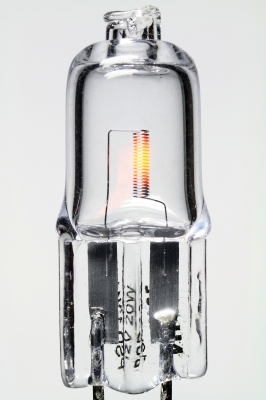

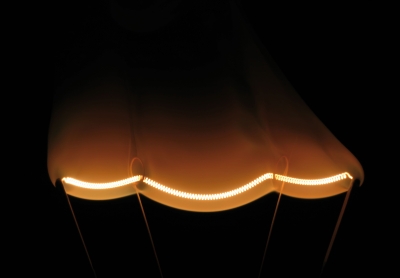

The filament temperature of incandescent lamps and X-ray tubes or the band temperature in electron beam tubes and mass spectrographs is a process-relevant variable for checking radiation properties, investigating ageing effects or for heating control.
In order to be able to measure the temperature of very small objects with modern electrical pyrometers, the lenses of the devices must have very good imaging properties and a high spatial resolution.

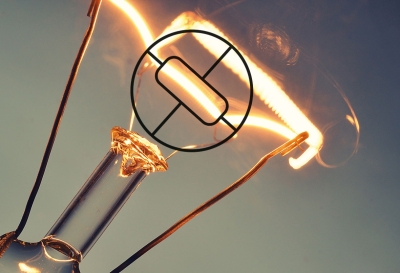

In addition, so-called panorama pyrometers with a rectangular measuring field are used to solve the measuring task. A hotter wire is allowed to move anywhere in the measuring field.
In order to be able to measure the temperature of very small objects with modern electrical pyrometers, the lenses of the devices must have very good imaging properties and a high spatial resolution.
In addition, so-called panorama pyrometers with a rectangular measuring field are used to solve the measuring task. A hotter wire is allowed to move anywhere in the measuring field.
Features

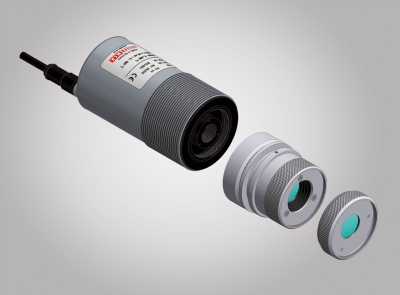

- large portfolio of optical solution variants through a combination of objective lenses and supplementary lenses
- high-quality multiple lenses for object sizes from 1.3 mm
- panoramic pyrometer with rectangular measuring field
Application report Measurement from filaments
