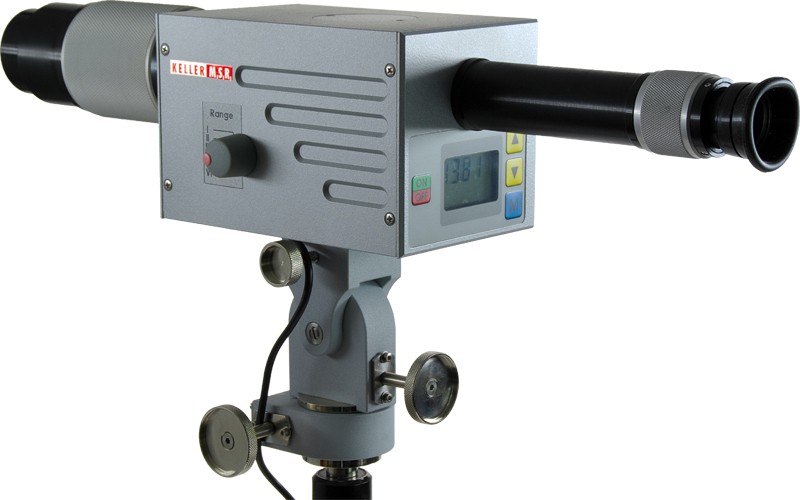

Pyrometer Mikro PV 11

Article description

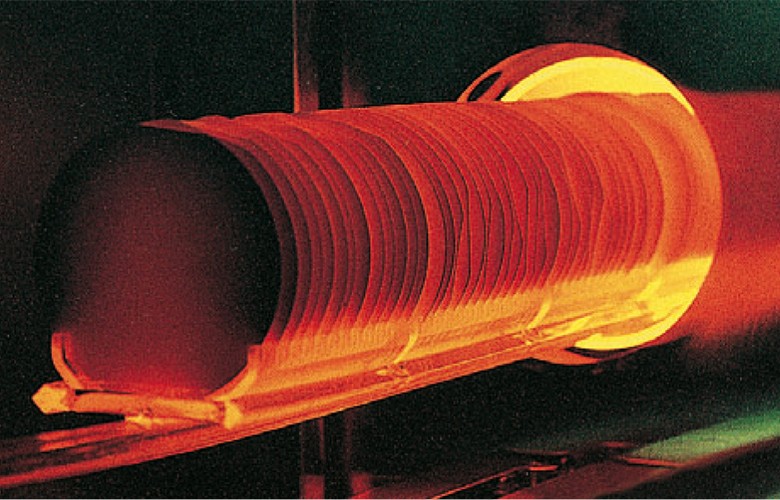

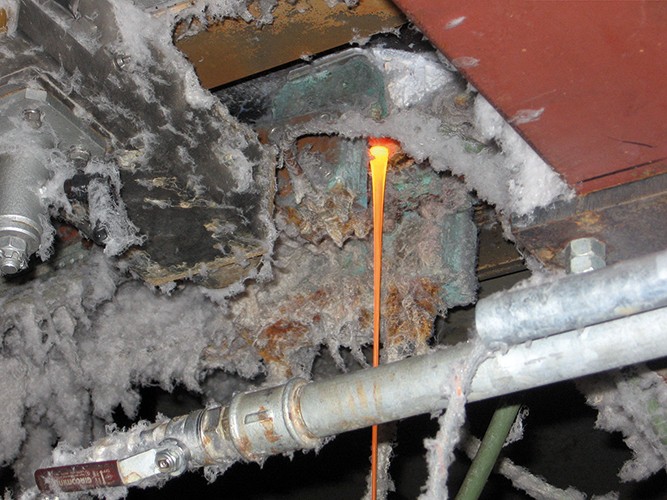

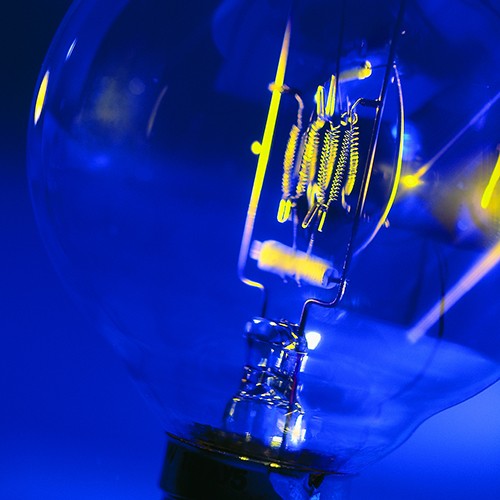

Intensity comparison pyrometer (successor to the filament pyrometer) for highly accurate temperature control in a measuring range from +700 °C to +3,500 °C on small and very small objects from 0.1 mm. The Micro PV 11 is used in many areas of industrial research and production, by universities and research institutes for measuring filaments, smallest metal and ceramic samples and in absorption spectrometers.

Special features:
  • Measuring range 700 to 3,000 °C
  • large field of view for recognition of the measuring object
  • sharp contour image of the measuring object
  • extremely high optical resolution (objects of 1 mm can be measured at a distance of 5 m)
  • measurement of very small objects from 0.1 mm
  • very high measuring accuracy due to the measuring principle and the measuring wavelength
  • very low influence of the emissivity
Pyrometer Mikro PV 11
Properties
Version
Measuring range
700 - 3000 °C
Focus distance
1 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us

Version Mikro PV 11 AF 1
Measuring range 700 - 3000 °C
Focus distance 1 m - ∞
Shape of the measuring field round
Measuring principle one-colour
Sighting option Through-the-lens-sighting

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request

Pyrometer Mikro PV 11

Technical Data

Measurement parameters

Measuring range 700 - 3500 °C
Spectral range 0.5 - 0.67 µm in sub-ranges
Measurement uncertainty 700 – 800 °C: 1.5 % of temp. reading [°C] + 2 K
800 – 2,000 °C: 0.6 % of temp. reading [°C] + 2 K
2,000 – 3,500 °C: 2.0 % of temp. reading [°C] + 2 K
Repeatability 3 K
Resolution display 1 K

Optical variants

Lenses without supplementary lens: focusing 1 m - ∞
with supplementary lens: focusing 0.2 - 1 m

Electrical parameters

Power supply 15 V DC

Features

Sighting option Through-the-lens-sighting
Display 4-digit LCD
Control elements 3 buttons

General parameters

Ambient temperature 10 - 45 °C
Storage temperature 0 - 55 °C

Adjustable parameters

Parameters Emissivity

Scope of delivery

Scope of delivery Pyrometer PV 11
Crosshead
Power supply unit
Carrying case
PC connection cable
Spare lamp

Pyrometer Mikro PV 11

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer Mikro PV 11

Downloads

Brochure Mikro PV 11
en
Manual PV 11
en
Declaration of conformity Declaration from Conformity PV11
en
UKCA Declaration from Conformity PV11
en

Pyrometer Mikro PV 11

Accessories

Pyrometer Mikro PV 11

IO-Link IODD

Pyrometer Mikro PV 11

IO-Link Manufacturer explanation

Pyrometer Mikro PV 11

Measuring field calculator

Pyrometer
  • PV 11 AF 1 (1,0 m - ∞)
PV 11 AF 1 (1,0 m - ∞)
Attachment lens
  • None
  • D1 (0,5 -1,0 m)
  • D2 (0,33 -0,55 m)
  • D1+D2 (0,25 -0,33 m)
  • D4 (0,2 -0,25 m)
None
Focus distance
mm
Graphic length
mm
Measuring distance (mm)0801602403204004805606407208008809600.20 mm
Measuring distanceMeasuring field diameter
0.00 mm38.00 mm
40.00 mm36.49 mm
80.00 mm34.98 mm
120.00 mm33.46 mm
160.00 mm31.95 mm
200.00 mm30.44 mm
240.00 mm28.93 mm
280.00 mm27.42 mm
320.00 mm25.90 mm
360.00 mm24.39 mm
400.00 mm22.88 mm
440.00 mm21.37 mm
480.00 mm19.86 mm
520.00 mm18.34 mm
560.00 mm16.83 mm
600.00 mm15.32 mm
640.00 mm13.81 mm
680.00 mm12.30 mm
720.00 mm10.78 mm
760.00 mm9.27 mm
800.00 mm7.76 mm
840.00 mm6.25 mm
880.00 mm4.74 mm
920.00 mm3.22 mm
960.00 mm1.71 mm
1,000.00 mm0.20 mm
