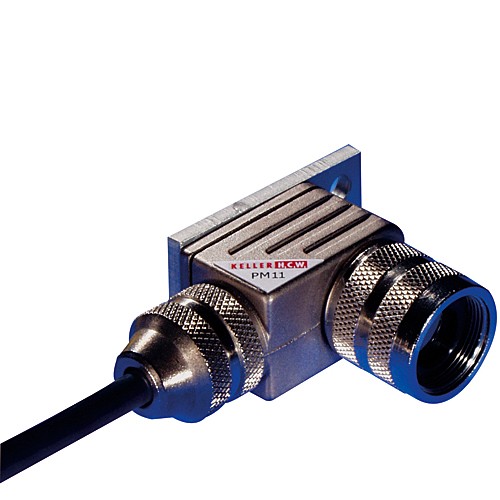

Pyrometer CellaTemp PM 11



Pyrometer CellaTemp PM 11
Properties
Version
Measuring range
0 - 200 °C
Focus distance
0,1 m
Your selection will affect other settings
You can request this article from us

Version CellaTemp PM 11 AF 1
Version CellaTemp PM 11 AF 2
Measuring range 0 - 200 °C
Measuring range 0 - 400 °C
Target size 6,6 mm
Target size 6,6 mm
Focus distance 0,1 m
Focus distance 0,1 m
Shape of the measuring field round
Measuring principle one-colour

Technical Data Downloads Measuring field calculator Emissivity calculator Application request

Pyrometer CellaTemp PM 11

Technical Data

Measurement parameters

Measuring range AF 1: 0 - 200 °C
AF 2: 0 - 400 °C
Sensor Thermopile
Spectral range 8 - 14 μm
Response time t90 ≤ 200 ms
Measurement uncertainty Measuring range 0 - 200 C:
≤ 3 K

Measuring range 0 - 400 °C:
≤ 1 % of temp. reading [°C] + 2 K, min. 4 K
Repeatability AF 1: ≤ 2 K
AF 2: ≤ 3 K
Temperature coefficient 0.07 %/K, min. 0.1 K/K
Resolution interface AF 1: 1.0 K
AF 2: 2.0 K

Electrical parameters

Analog output 10 mV / °C linear
Power supply 11 - 27 VDC
Current consumption ≤ 10 mA

General parameters

Connection via cable (5 m)
Ambient temperature 0 - 60 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Pyrometer: 36 mm x 20 mm x 54 mm (LxWxH)
Mounting plate: 40 mm x 20 mm
Housing Nickel plated metal
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.15 kg

Adjustable parameters

Parameters Emissivity (20 - 100 %, adjustable externally)

Scope of delivery

Scope of delivery Pyrometer CellaTemp PM
Connection cable 5 m
Manual

Pyrometer CellaTemp PM 11

Emissivity calculator

Pyrometer CellaTemp PM 11

Downloads

Pyrometer CellaTemp PM 11

Accessories

Wir haben leider kein passendes Zubehör gefunden.

Pyrometer CellaTemp PM 11

IO-Link IODD

Pyrometer CellaTemp PM 11

IO-Link Manufacturer explanation

Pyrometer CellaTemp PM 11

Measuring field calculator

Pyrometer
  • PM 11 AF 1 (0,1 m)
  • PM 11 AF 2 (0,1 m)
PM 11 AF 1 (0,1 m)
Graphic length
mm
Measuring distance (mm)048121620242832364044485256606468727680848892961006.60 mm
Measuring distanceMeasuring field diameter
0.00 mm10.00 mm
4.00 mm9.86 mm
8.00 mm9.73 mm
12.00 mm9.59 mm
16.00 mm9.46 mm
20.00 mm9.32 mm
24.00 mm9.18 mm
28.00 mm9.05 mm
32.00 mm8.91 mm
36.00 mm8.78 mm
40.00 mm8.64 mm
44.00 mm8.50 mm
48.00 mm8.37 mm
52.00 mm8.23 mm
56.00 mm8.10 mm
60.00 mm7.96 mm
64.00 mm7.82 mm
68.00 mm7.69 mm
72.00 mm7.55 mm
76.00 mm7.42 mm
80.00 mm7.28 mm
84.00 mm7.14 mm
88.00 mm7.01 mm
92.00 mm6.87 mm
96.00 mm6.74 mm
100.00 mm6.60 mm
