Pyrometer CellaCast PA 83

Article description

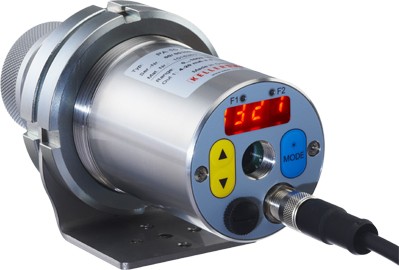

The CellaCast PA 83 was specially developed for measuring the temperature of liquid metals on automatic casting machines for plug and ladle casting. When measuring on an automatic casting machine, the position of the pouring stream can change depending on the outlet or the tilt angle of the ladle. The special feature of the CellaCast PA 83 is the rectangular measuring field. As long as the pouring stream remains within the measuring field, a reliable measured value is determined.

Special features:
  • Measuring range 650 to 1,700 °C
  • wear-free and maintenance-free measuring system for temperature measurement of the pouring stream on automatic casting machines
  • lens with rectangular measuring field for reliable measurement even with fluctuating position of the pouring stream
  • ATD function for automatic recording and monitoring of the temperature for each casting
  • two-colour measuring method for interference-free measurement in dust and vapour
  • through-the-lens sighting or video camera for correct alignment and monitoring of the measuring field
  • very large and bright LED display
Pyrometer CellaCast PA 83
Properties
Version
Measuring range
650 - 1700 °C
Focus distance
0,2 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us

Version CellaCast PA 83 AF 1
Version CellaCast PA 83 AF 3
Version CellaCast PA 83 AF 10
Version CellaCast PA 83 AF 11
Version CellaCast PA 83 AF 13
Measuring range 650 - 1700 °C
Measuring range 650 - 1700 °C
Measuring range 650 - 1700 °C
Measuring range 750 - 2400 °C
Measuring range 650 - 1700 °C
Focus distance 0,4 m - ∞
Focus distance 1,2 m - ∞
Focus distance 0,2 m - ∞
Focus distance 0,2 m - ∞
Focus distance 0,3 m - ∞
Shape of the measuring field rectangular
Distance ratio 45:1 / 230:1
Distance ratio 75:1 / 375:1
Distance ratio 10:1 / 55:1
Distance ratio 11:1 / 85:1
Distance ratio 30:1 / 150:1
Objective PZ 20.01
Objective PZ 20.06
Objective PZ 20.05
Objective PZ 20.05
Objective PZ 20.08
Measuring principle two-colour
Sighting option Through-the-lens-sighting
Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request

Pyrometer CellaCast PA 83

Technical Data

Measurement parameters

Measuring range 650 - 2400 °C in several segments
Sensor Double photo diode
Spectral range 0.95 / 1.05 µm
Response time t98 Measuring range 650 - 1700 °C:
≤ 10 ms (T > 750 °C)

Measuring range 750 - 2400 °C:
≤ 10 ms (T > 950 °C)
Measurement uncertainty 1.5 % of temp. reading [°C]
Repeatability 3 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses both measuring ranges:
Standard objective lens PZ 20.01: focusing 0.4 m - ∞
Close-up lens PZ 20.03: focusing 0.2 m - 0.4 m
Wide-angle lens PZ 20.05: focusing 0.2 m - ∞
Telephoto lens I PZ 20.06: focusing 1.2 m - ∞
Telephoto lens II PA 20.06: focusing 0.6 m - ∞
Objektiv F50 PZ 20.08: Fokussierung 0,3 m - ∞

additionally for measuring range 750 - 2400 °C:
Macro lens PA 40.01: focusing 0.086 m - 0.115 m

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Analog input 0 - 10 V
Switching output 2 x Open Collector 24 V DC, ≤ 30 mA
Switching input 2 x to 24 V
Interface USB
Interface RS 485
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

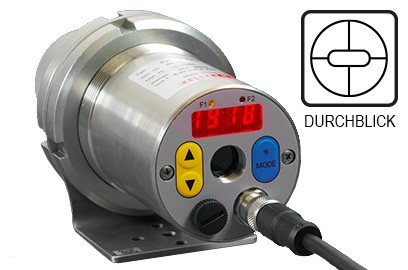

Sighting option Through-the-lens-sighting

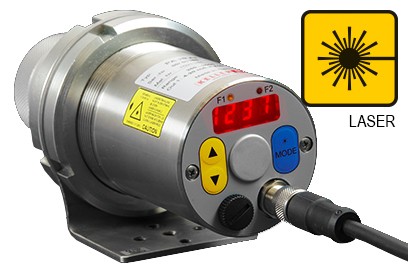

Sighting option Laser pilot light

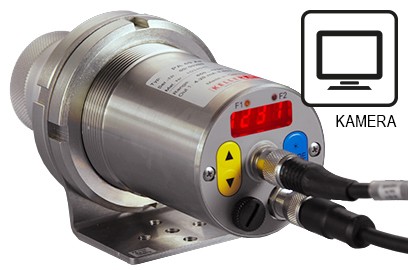

Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 2 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 8-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Measuring range
Measured variable and scale of analogue input and output signals
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Compensation of the reflected ambient radiation
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Linearization function
Status display of the LEDs
Simulation of current and temperature
Temperature unit °C/°F
Measurement channel two-colour, single-colour 1 and single-colour 2
Threshold level of the contamination monitoring

in addition, for model with camera:
TBC function
White balance

Functions

Overtemperature signal if the internal temperature exceeds 80 °C the analogue output shows a value > 20.5 mA
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PA
Connection cable VK 02/A (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
USB cable VK 11/D (1.8 m)
Software CellaView
Manual (short)

Software

Software CellaView

Pyrometer CellaCast PA 83

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCast PA 83

Downloads

Brochure CellaCast PA83 PT183
en
Brochure CellaView
en
Application report CellaCast
en
Manual CellaCast PA8x
en
Quick guide CellaCast PA8x
en
Declaration of conformity Declaration from Conformity PAxx
en
UKCA Declaration from Conformity PAxx
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaCast PA 83

Accessories

Pyrometer CellaCast PA 83

IO-Link IODD

Pyrometer CellaCast PA 83

IO-Link Manufacturer explanation

Pyrometer CellaCast PA 83

Measuring field calculator

Pyrometer
  • PA 83 AF 1 (0,4 m - ∞)
  • PA 83 AF 10 (0,2 m - ∞)
  • PA 83 AF 11 (0,2 m - ∞)
  • PA 83 AF 13 (0,3 m - ∞)
  • PA 83 AF 3 (1,2 m - ∞)
PA 83 AF 1 (0,4 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523848.89 x 1.74 mm
Measuring distanceMeasuring field widthMeasuring field height
0.00 mm19.00 mm19.00 mm
16.00 mm18.60 mm18.31 mm
32.00 mm18.19 mm17.62 mm
48.00 mm17.79 mm16.93 mm
64.00 mm17.38 mm16.24 mm
80.00 mm16.98 mm15.55 mm
96.00 mm16.57 mm14.86 mm
112.00 mm16.17 mm14.17 mm
128.00 mm15.76 mm13.48 mm
144.00 mm15.36 mm12.79 mm
160.00 mm14.96 mm12.10 mm
176.00 mm14.55 mm11.41 mm
192.00 mm14.15 mm10.71 mm
208.00 mm13.74 mm10.02 mm
224.00 mm13.34 mm9.33 mm
240.00 mm12.93 mm8.64 mm
256.00 mm12.53 mm7.95 mm
272.00 mm12.12 mm7.26 mm
288.00 mm11.72 mm6.57 mm
304.00 mm11.32 mm5.88 mm
320.00 mm10.91 mm5.19 mm
336.00 mm10.51 mm4.50 mm
352.00 mm10.10 mm3.81 mm
368.00 mm9.70 mm3.12 mm
384.00 mm9.29 mm2.43 mm
400.00 mm8.89 mm1.74 mm
