Pyrometer CellaWafer PK 35

Article description

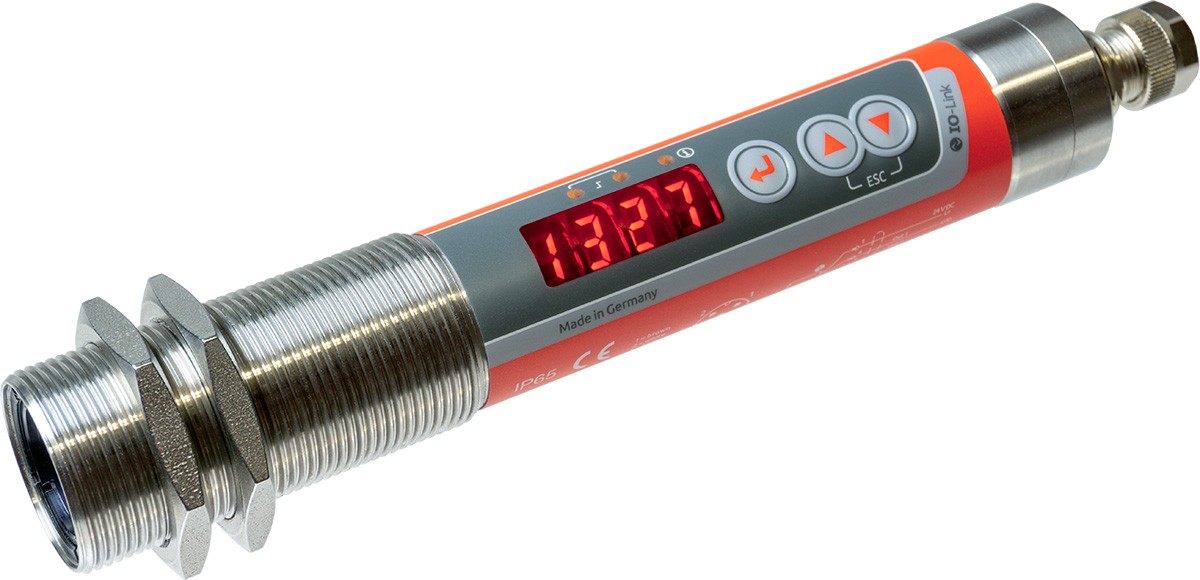

The CellaWafer PK 35 is a pyrometer for fast and precise temperature measurement during the coating and heat treatment of semiconductors, for example using RTP Rapid Thermal Processing, in the temperature range between 450 and 1,400 °C. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:
  • Measuring range 450 to 1,400 °C
  • switching output universally configurable
  • high optical resolution due to precision lenses
  • IO-Link interface
  • all parameters can be set via pushbutton on the sensor or via interface from the plant control system
  • 2 x switching outputs PNP open collector
  • very simple mounting via M30 central thread
  • large and bright LED display
Pyrometer CellaWafer PK 35
Properties
Version
Measuring range
450 - 1400 °C
Focus distance
0,3 m
Your selection will affect other settings
You can request this article from us

Version CellaWafer PK 35 BF 1
Measuring range 450 - 1400 °C
Target size 7 mm
Focus distance 0,3 m
Shape of the measuring field round
Distance ratio 1124960
Measuring principle one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaWafer PK 35

Technical Data

Measurement parameters

Measuring range 450 - 1400 °C
Sensor Photo diode
Spectral range 0.82 - 0.93 µm
Response time t90 ≤ 2 ms (T > 750 °C)
Measurement uncertainty 0,3 % vom Messwert [°C] zzgl. 3,0 K
Repeatability 1 K
Temperature coefficient 0.07 %/K
Resolution current output 0.1 K + 0.005 % of selected measuring span
Resolution interface 0.1 K
Resolution display 1 K

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input 10 - 34 V DC (acc. to IEC 61131-2)
Interface IO-Link V1.1.3
Power supply 18 - 32 V DC
Current consumption ≤ 50 mA at 24 V DC

Features

Display 4-digit LED display red, digit-height 8 mm
Status display 3 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection (A-coding)
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)

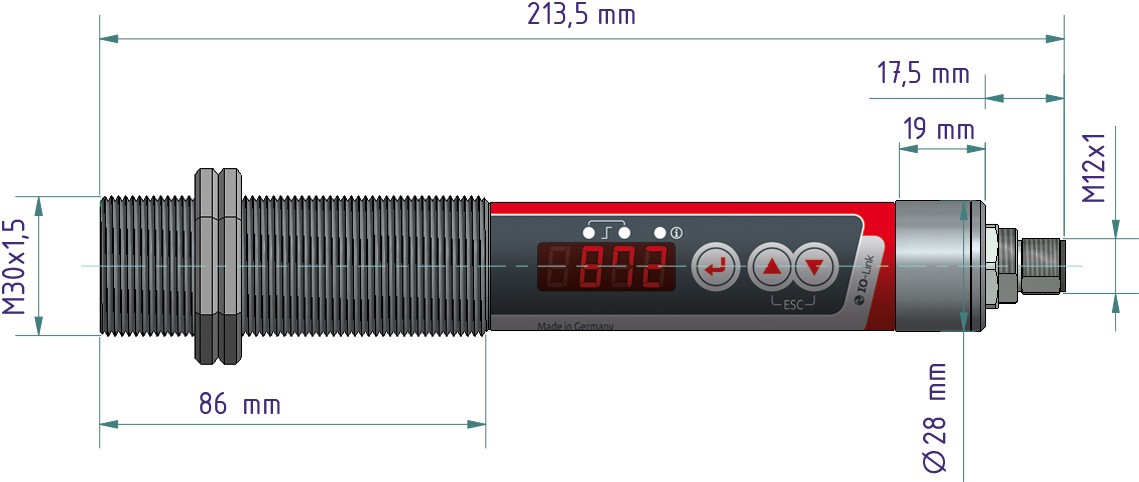

Dimension Ø 30 x 210 mm (without plug)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.4 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Emissivity via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value
Diagnostic function Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection for power supply, analogue output and switching output

Scope of delivery

Scope of delivery Infrared thermometer CellaTemp PK
Manual (short)
2 fixing nuts
