Pyrometer CellaTemp PX 61

Article description

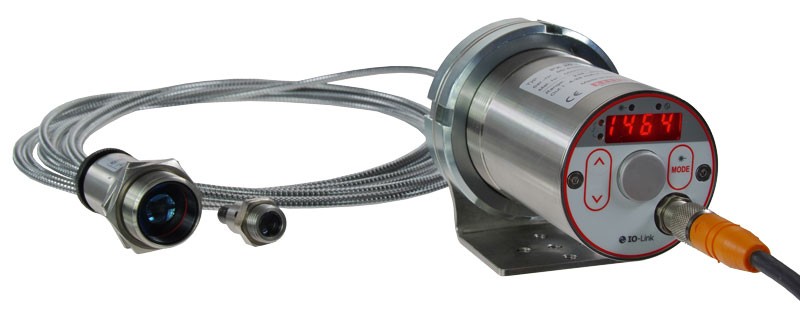

The CellaTemp® PX 61 is a digital two-colour pyrometer with a fibre optic cable for measuring temperatures between 375 and 1,200 °C. The two-colour pyrometer is equipped with a separate optical measuring head and a fibre optic cable. The fibre optic cable and measuring head are insensitive to interference from electromagnetic radiation and can be used in ambient temperatures up to 250 °C without cooling. The variant with separate optical measuring head has advantages especially in confined spaces.

Special features:
  • Measuring range 375 to 1,200 °C
  • focusable interchangeable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lenses
  • short measuring wavelengths
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • standard feature: analogue output and USB/RS 485 interface
  • measuring head and fibre optic cable heat resistant up to 250 °C
Pyrometer CellaTemp PX 61
Properties
Version
Measuring range
375 - 1200 °C
Focus distance
0,12 m - ∞
Laser pilot light
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaTemp PX 61 AF 21
Measuring range 375 - 1200 °C
Focus distance 0,12 m - ∞
Shape of the measuring field round
Distance ratio 40 : 1
Measuring head PA 41.05
Measuring principle two-colour

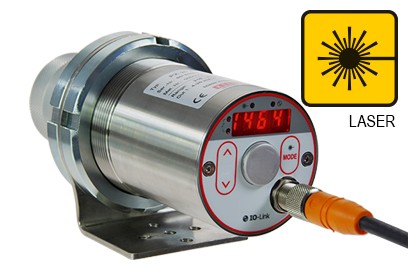

Sighting option Laser pilot light

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PX 61

Technical Data

Measurement parameters

Measuring range 375 - 1200 °C
Sensor Double photo diode
Spectral range 1,5 / 1,9 µm
Response time t98 Messbereich 375 - 1200 °C:
≤ 20 ms (T > xxx °C)
Measurement uncertainty 1.5 % of temp. reading [°C]
Repeatability 3 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

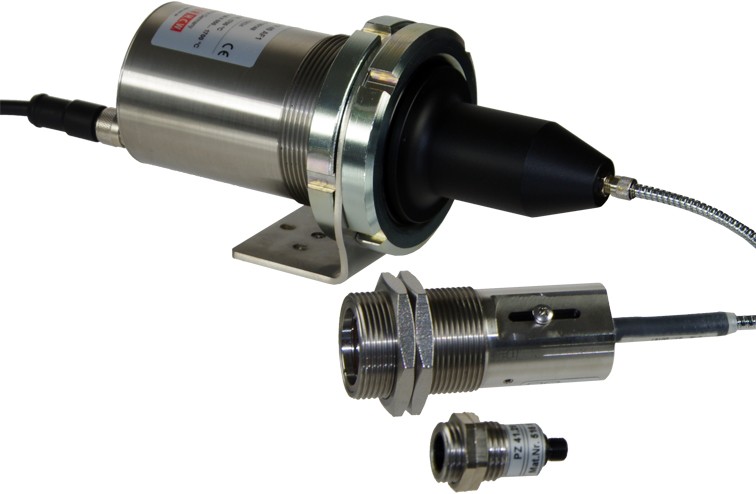

Measuring heads PA 41.05 (M16): Focusing 0.12 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Features

Sighting option Laser pilot light
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature Electronic: 0 - 65 °C
Measuring head: 250 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Electronic: Ø 65 mm x 187 mm
Measuring head: depending on the type
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F
Measurement channel two-colour, single-colour 1 and single-colour 2
Threshold level of the contamination monitoring

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Measuring head
Manual (short)
* The fibre optic cable must be ordered separately.

Pyrometer CellaTemp PX 61

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PX 61

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Manual CellaTemp PX 41
en
Quick guide CellaTemp PX 4x 5x 6x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PX
en

Pyrometer CellaTemp PX 61

Accessories

Pyrometer CellaTemp PX 61

IO-Link IODD

Type Datei Dateigröße
IODD PX61AF11-21-22_20241107.zip 1306 KB Download

Pyrometer CellaTemp PX 61

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 61 AF 11 21 22_20241126_en.pdf 124 KB Download

Pyrometer CellaTemp PX 61

Measuring field calculator

Pyrometer
  • PX 61 AF 21 (0,12 m - ∞)
PX 61 AF 21 (0,12 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)04.89.614.419.22428.833.638.443.24852.857.662.467.27276.881.686.491.296100.8105.6110.4115.21203.00 mm
Measuring distanceMeasuring field diameter
0.00 mm9.20 mm
4.80 mm8.95 mm
9.60 mm8.70 mm
14.40 mm8.46 mm
19.20 mm8.21 mm
24.00 mm7.96 mm
28.80 mm7.71 mm
33.60 mm7.46 mm
38.40 mm7.22 mm
43.20 mm6.97 mm
48.00 mm6.72 mm
52.80 mm6.47 mm
57.60 mm6.22 mm
62.40 mm5.98 mm
67.20 mm5.73 mm
72.00 mm5.48 mm
76.80 mm5.23 mm
81.60 mm4.98 mm
86.40 mm4.74 mm
91.20 mm4.49 mm
96.00 mm4.24 mm
100.80 mm3.99 mm
105.60 mm3.74 mm
110.40 mm3.50 mm
115.20 mm3.25 mm
120.00 mm3.00 mm
