Pyrometer CellaCrystal PA 44

Article description

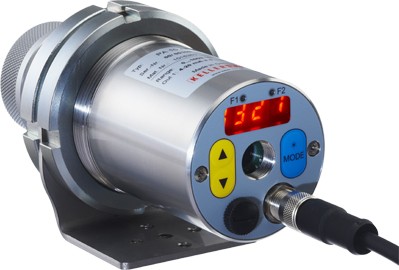

The CellaCrystal PA 44 has been developed for optical temperature measurement when growing crystals. The calibration is especially adapted to the production of crystals. Combined with the constant high resolution of < 0.1 K over the entire measuring range and the very high long-term stability, the device meets the requirements for the necessary high measuring accuracy. With the help of the through-the-lens sighting, laser pilot light or video camera, the pyrometer can be precisely aligned to the measuring point.

Special features:
  • Measuring range 750 to 3,000 °C
  • PA 44 AF 4/5: special calibration for the production of crystals
  • PA 44 AF 7: special calibration for the production of silicon carbide
  • hybrid signal evaluation for high metrological resolution
  • high long-term stability due to minimal self-heating
  • focusable lens for exact adjustment of the measuring distance
  • standard feature: analogue output and USB/RS 485 interface

Pyrometer CellaCrystal PA 44
Properties
Version
Measuring range
750 - 2400 °C
Focus distance
0,2 - 0,4 m
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us

Version CellaCrystal PA 44 AF 4
Version CellaCrystal PA 44 AF 5
Version CellaCrystal PA 44 AF 7
Version CellaCrystal PA 44 AF 9
Measuring range 750 - 2400 °C
Measuring range 750 - 2400 °C
Measuring range 850 - 3000 °C
Measuring range 850 - 3000 °C
Focus distance 0,4 m - ∞
Focus distance 0,2 - 0,4 m
Focus distance 0,4 m - ∞
Focus distance 1,2 m - ∞
Shape of the measuring field round
Distance ratio 150 : 1
Distance ratio 140 : 1
Distance ratio 150 : 1
Distance ratio 240 : 1
Objective PZ 20.01
Objective PZ 20.03
Objective PZ 20.01
Objective PZ 20.06
Measuring principle two-colour

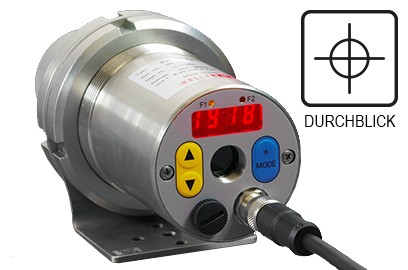

Sighting option Through-the-lens-sighting

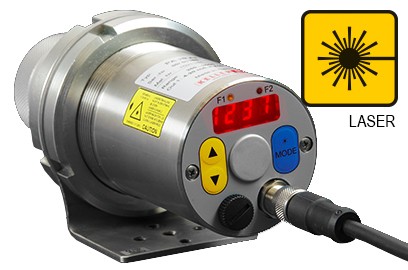

Sighting option Laser pilot light

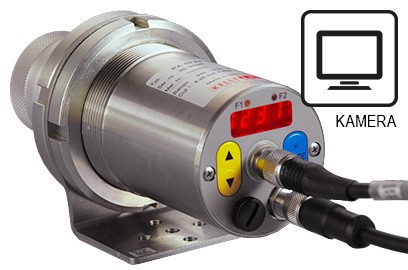

Sighting option Video camera

Technical Data Downloads Measuring field calculator Emissivity calculator Application request

Pyrometer CellaCrystal PA 44

Technical Data

Pyrometer CellaCrystal PA 44

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCrystal PA 44

Downloads

Brochure CellaTemp PA
en
Brochure Supplementary lenses
en
Brochure CellaView
en
Manual CellaTemp PA 4x5x6x
en
Quick guide CellaTemp PA4x 5x 6x
en
Declaration of conformity Declaration from Conformity PAxx
en
UKCA Declaration from Conformity PAxx
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaCrystal PA 44

Accessories

Wir haben leider kein passendes Zubehör gefunden.

Pyrometer CellaCrystal PA 44

IO-Link IODD

Pyrometer CellaCrystal PA 44

IO-Link Manufacturer explanation

Pyrometer CellaCrystal PA 44

Measuring field calculator

Pyrometer
  • PA 44 AF 4 (0,4 m - ∞)
  • PA 44 AF 5 (0,2 - 0,4 m)
  • PA 44 AF 7 (0,4 m - ∞)
  • PA 44 AF 9 (1,2 m - ∞)
PA 44 AF 4 (0,4 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523842.67 mm
Measuring distanceMeasuring field diameter
0.00 mm18.00 mm
16.00 mm17.39 mm
32.00 mm16.77 mm
48.00 mm16.16 mm
64.00 mm15.55 mm
80.00 mm14.93 mm
96.00 mm14.32 mm
112.00 mm13.71 mm
128.00 mm13.09 mm
144.00 mm12.48 mm
160.00 mm11.87 mm
176.00 mm11.25 mm
192.00 mm10.64 mm
208.00 mm10.03 mm
224.00 mm9.41 mm
240.00 mm8.80 mm
256.00 mm8.19 mm
272.00 mm7.57 mm
288.00 mm6.96 mm
304.00 mm6.35 mm
320.00 mm5.73 mm
336.00 mm5.12 mm
352.00 mm4.51 mm
368.00 mm3.89 mm
384.00 mm3.28 mm
400.00 mm2.67 mm
