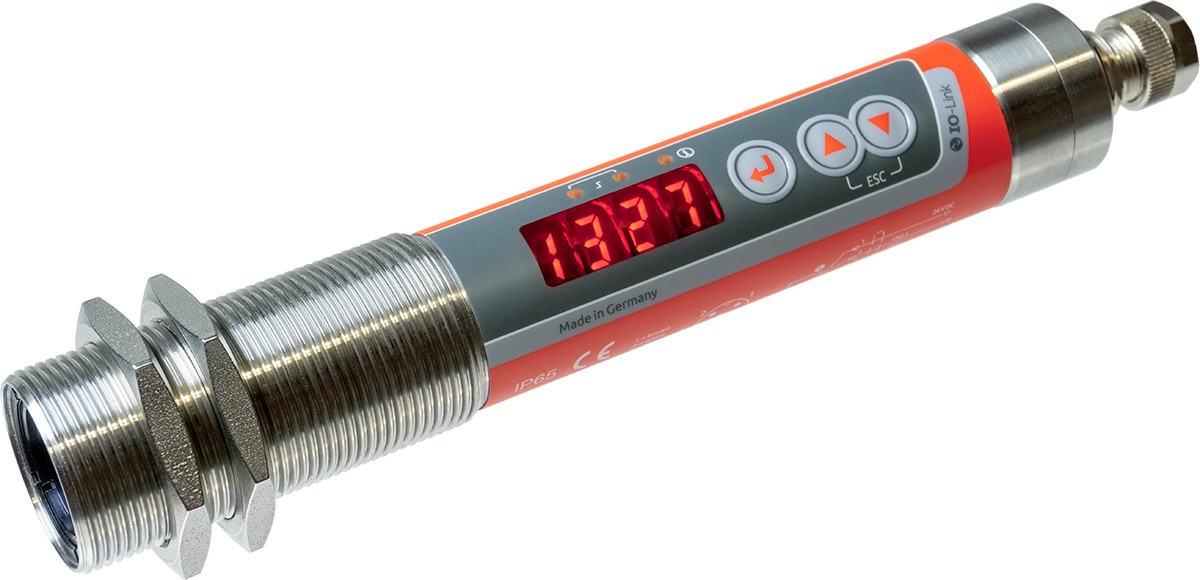

Pyrometer CellaCombustion PK 74

Article description

The CellaCombustion PK 74 carries out the measurement at a specific wavelength at which hot, carbonaceous gases have a high optical density and thus good radiative properties. The infrared thermometer is used to measure the flue gas temperature in gas-fired boilers and small combustion systems. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:

Measuring range 250 to 1,700 °C
small/compact design
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
2 x switching outputs PNP open collector

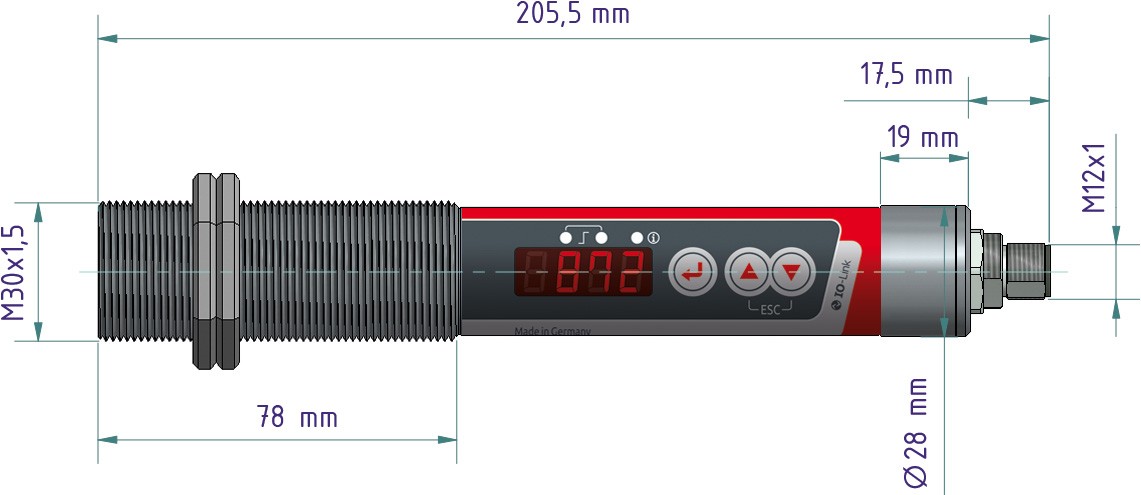

very simple mounting via M30 central thread

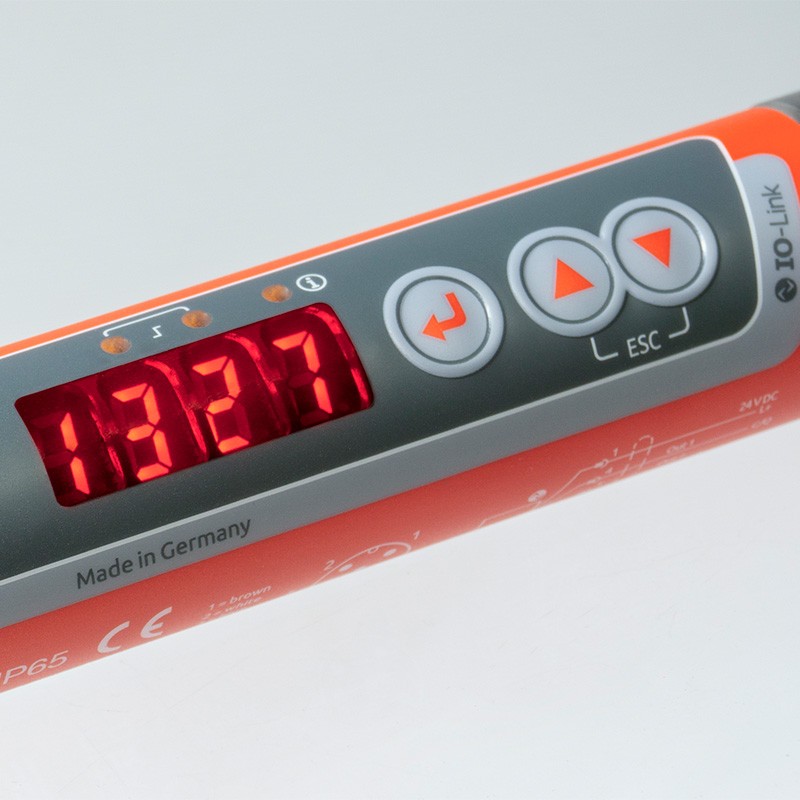

large and bright LED display

Pyrometer CellaCombustion PK 74

Measuring range		250 - 1700 °C 250 - 1700 °C
Focus distance		0,4 m 0,4 m

Your selection will affect other settings

Version

BF 1

You can request this article from us
Quantity:

Version	CellaCombustion PK 74 BF 1
Measuring range	250 - 1700 °C
Target size	7 mm
Focus distance	0,4 m
Shape of the measuring field	round
Measuring principle	one-colour
