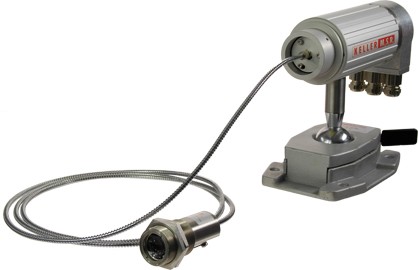

Pyrometer CellaTemp PZ 21

Article description



Special features:
Pyrometer CellaTemp PZ 21
Properties
Version
Measuring range
350 - 2000 °C
Focus distance
0,15 m - ∞
Laser pilot light
Your selection will affect other settings
You can request this article from us

Version CellaTemp PZ 21 AF 401
Measuring range 350 - 2000 °C
Focus distance 0,15 m - ∞
Shape of the measuring field round
Distance ratio 80 : 1
Measuring head PZ 41.31
Measuring principle one-colour
Sighting option Laser pilot light

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request

Pyrometer CellaTemp PZ 21

Technical Data

Measurement parameters

Measuring range 350 - 2000 °C
Sensor Photo diode
Spectral range 1,1 - 1,7 μm
Response time t98 ≤ 40 ms (T ≥ 1000 °C)
Measurement uncertainty 1 % of temp. reading [°C]
Repeatability 2 K
Temperature coefficient 0.25 K/K (T < 500 °C)
0.05 %/K (T > 500 °C)
Resolution interface ≤ 1 K

Optical variants

Measuring heads PZ 41.31 (M30): focusing 0.15 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω

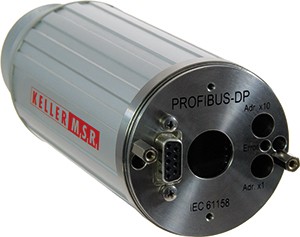

Interface Profibus DP
Power supply 22 - 27 VDC
Current consumption ≤ 100 mA with activated laser spot light

Features

Sighting option Through-the-lens-sighting
Sighting option Laser pilot light

General parameters

Connection Screw terminals
Ambient temperature Electronic: 0 - 60 °C
Measuring head: -20 - +250 °C
Storage temperature Electronic: -20 - +70 °C
Measuring head: -20 - +250 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Electronic: Ø 65 mm x 160 mm
Measuring head: Ø 30 mm x 75 mm
Housing Aluminium
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.8 kg

Adjustable parameters

Parameters Emissivity 10 to 99%; increment 1 %
Smoothing filter
Min./Max. peak picker
Double maximum with adjustable hold time
Device address
Temperature unit °C/°F
Diagnostic function

Functions

Overtemperature signal if the internal temperature exceeds 65 °C the analogue output shows a value > 20.5 mA

Scope of delivery

Scope of delivery Pyrometer CellaTemp PZ
Measuring head
Manual
GSD file on CD

Pyrometer CellaTemp PZ 21

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PZ 21

Downloads

Manual CellaTemp PZDP AF4xx
en
Declaration of conformity Declaration from Conformity PZ-Prof
en
UKCA Declaration from Conformity PZ-Prof
en

Pyrometer CellaTemp PZ 21

Accessories

Pyrometer CellaTemp PZ 21

IO-Link IODD

Pyrometer CellaTemp PZ 21

IO-Link Manufacturer explanation

Pyrometer CellaTemp PZ 21

Measuring field calculator

Pyrometer
  • PZ 21 AF 401 (0,15 m - ∞)
PZ 21 AF 401 (0,15 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)061218243036424854606672788490961021081141201261321381441501.88 mm
Measuring distanceMeasuring field diameter
0.00 mm22.00 mm
6.00 mm21.20 mm
12.00 mm20.39 mm
18.00 mm19.59 mm
24.00 mm18.78 mm
30.00 mm17.98 mm
36.00 mm17.17 mm
42.00 mm16.37 mm
48.00 mm15.56 mm
54.00 mm14.76 mm
60.00 mm13.95 mm
66.00 mm13.15 mm
72.00 mm12.34 mm
78.00 mm11.54 mm
84.00 mm10.73 mm
90.00 mm9.93 mm
96.00 mm9.12 mm
102.00 mm8.32 mm
108.00 mm7.51 mm
114.00 mm6.71 mm
120.00 mm5.90 mm
126.00 mm5.10 mm
132.00 mm4.29 mm
138.00 mm3.49 mm
144.00 mm2.68 mm
150.00 mm1.88 mm
