Pyrometer CellaTemp PKF 67

Article description

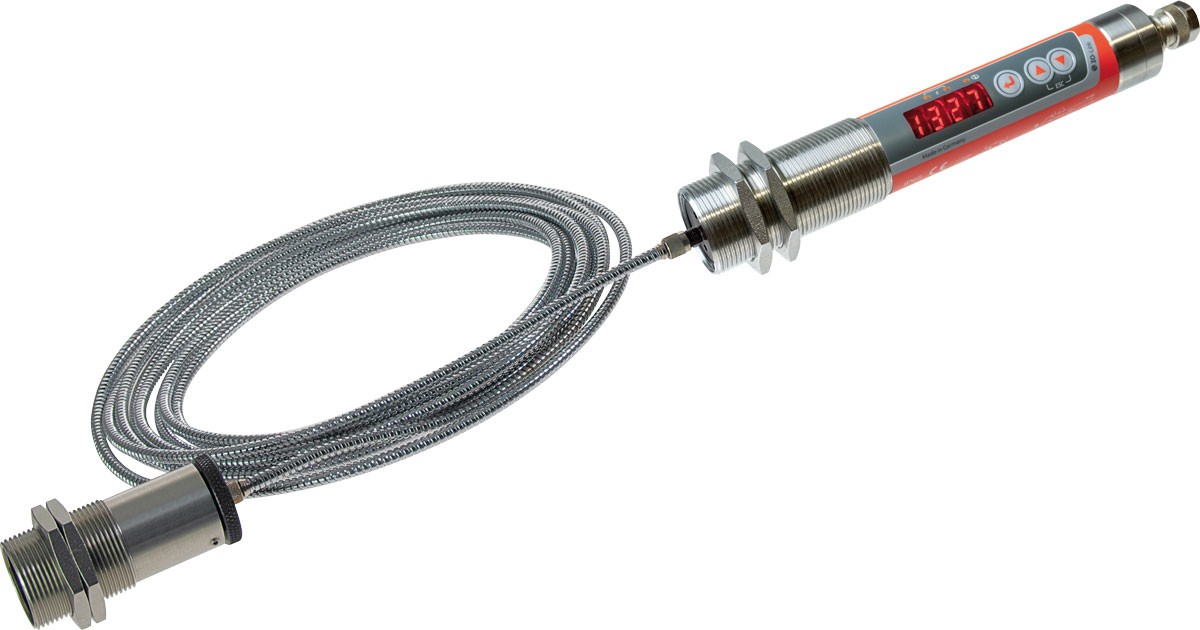

The CellaTemp® PKF 67 has separate electronics and measuring head. The infrared radiation is transmitted to the electronics via a fibre optic cable. The measuring head can be used without cooling in ambient temperatures up to 250 °C. This version can also be used in cramped mounting conditions or high electromagnetic fields. The length of the fibre optic cable can be up to 50 m. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:
  • Measuring range 600 to 1,400 °C
  • fibre optic cable version up to 50 m length possible
  • switching output universally configurable
  • high optical resolution due to precision lenses
  • IO-Link interface
  • all parameters can be set via pushbutton on the sensor or via interface from the plant control system
  • 2 x switching outputs PNP open collector
  • very simple mounting via M30 central thread
  • large and bright LED display

Pyrometer CellaTemp PKF 67
Properties
Version
Measuring range
600 - 1400 °C
Focus distance
1,8 m
Laser pilot light
Your selection will affect other settings
You can request this article from us

Version CellaTemp PKF 67 AF 5
Measuring range 600 - 1400 °C
Target size 16 mm
Focus distance 1,8 m
Shape of the measuring field round
Measuring head PA 41.03
Measuring principle two-colour
Sighting option Laser pilot light

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PKF 67

Technical Data

Measurement parameters

Measuring range 600 - 1400 °C
Sensor Double photo diode
Spectral range 0.95 / 1.05 µm
Response time t90 ≤ 10 ms (T > 700 °C)
Measurement uncertainty 1 % vom Messwert [°C] zzgl. 3,0 K
Repeatability 2 K
Temperature coefficient 0.05 %/K
Resolution current output 0.1 K + 0.005 % of selected measuring span
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

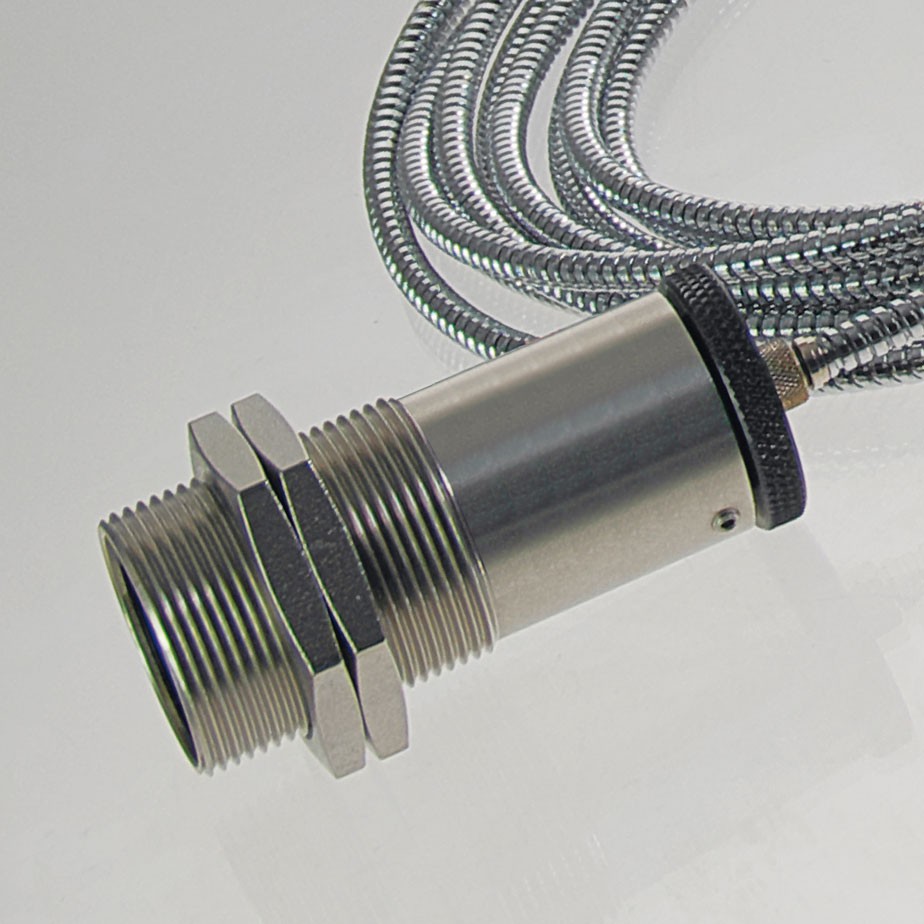

Measuring heads PA 41.03 (M30): Focusing 1.8 m (sealed)

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input 10 - 34 V DC (acc. to IEC 61131-2)
Interface IO-Link V1.1.3
Power supply 18 - 32 V DC
Current consumption ≤ 50 mA at 24 V DC

Features

Display 4-digit LED display red, digit-height 8 mm
Status display 3 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection (A-coding)
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)

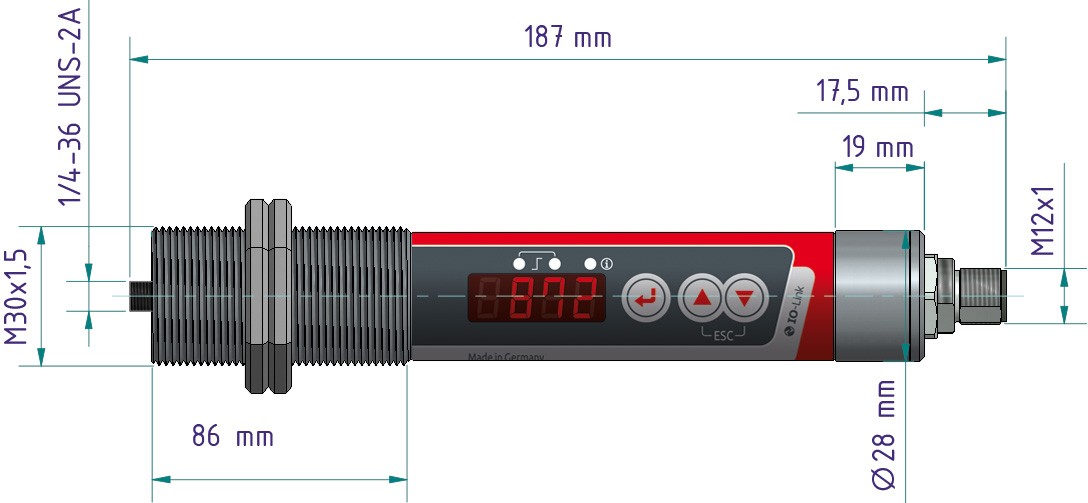

Dimension Ø 30 x 210 mm (without plug)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.4 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Ratio correction via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value
DTD-(Discontinuous Temperature Detection) function Automatic temperature detection at discontinuous processes
Diagnostic function Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection M12 thread 5-pin connection (A-coding)

Scope of delivery

Scope of delivery Infrared thermometer CellaTemp PKF
Measuring head
Manual (short)
2 fixing nuts
* The fibre optic cable must be ordered separately.

Pyrometer CellaTemp PKF 67

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaTemp PKF 67

Downloads

Brochure CellaTemp PK PKF PKL
en
Brochure Flyer IO-Link
en
Manual CellaTemp PKx 6x IO-Link
en
Quick guide CellaTemp PK6x IO-Link
en
Drawing PK 01 E AF2
en
Declaration of conformity Declaration from Conformity PKxy
en
UKCA Declaration from Conformity PKxy
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaTemp PKF 67

Accessories

Pyrometer CellaTemp PKF 67

IO-Link IODD

Pyrometer CellaTemp PKF 67

IO-Link Manufacturer explanation

Pyrometer CellaTemp PKF 67

Measuring field calculator

Pyrometer
  • PKF 67 BF 5 (1,8 m)
PKF 67 BF 5 (1,8 m)
Graphic length
mm
Measuring distance (mm)014428843257672086410081152129614401584172816.00 mm
Measuring distanceMeasuring field diameter
0.00 mm17.00 mm
72.00 mm16.96 mm
144.00 mm16.92 mm
216.00 mm16.88 mm
288.00 mm16.84 mm
360.00 mm16.80 mm
432.00 mm16.76 mm
504.00 mm16.72 mm
576.00 mm16.68 mm
648.00 mm16.64 mm
720.00 mm16.60 mm
792.00 mm16.56 mm
864.00 mm16.52 mm
936.00 mm16.48 mm
1,008.00 mm16.44 mm
1,080.00 mm16.40 mm
1,152.00 mm16.36 mm
1,224.00 mm16.32 mm
1,296.00 mm16.28 mm
1,368.00 mm16.24 mm
1,440.00 mm16.20 mm
1,512.00 mm16.16 mm
1,584.00 mm16.12 mm
1,656.00 mm16.08 mm
1,728.00 mm16.04 mm
1,800.00 mm16.00 mm
