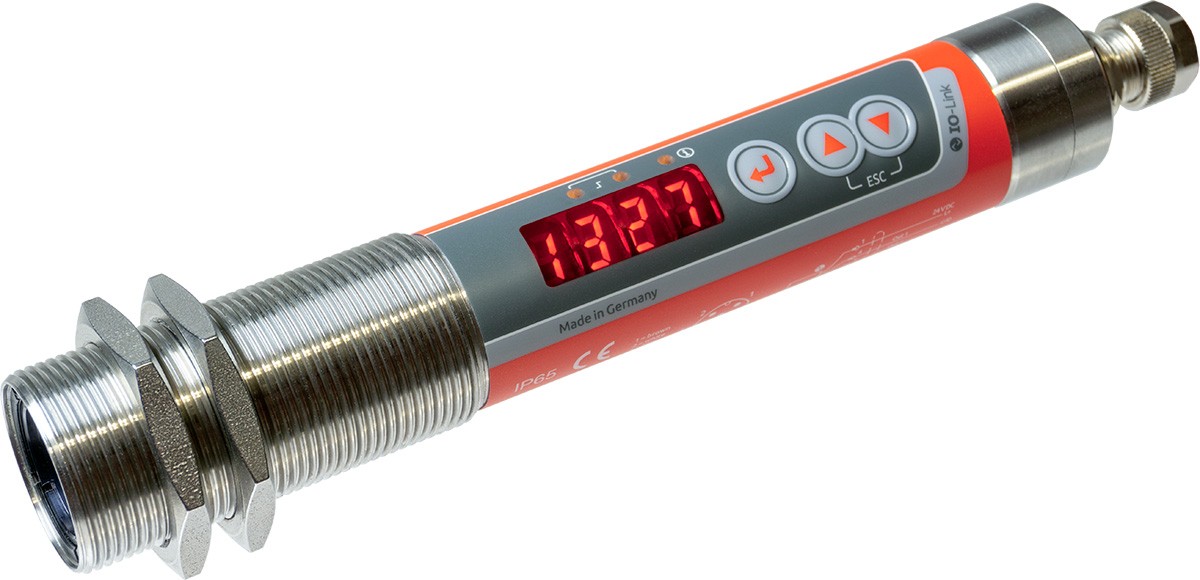

Pyrometer CellaTemp PK 29

Article description

The CellaTemp® PK 29 is equipped with a special blocking filter. As a result, the measurement is not affected by daylight. This pyrometer also responds substantially less sensitive on reflective external radiation from hot objects around than conventional devices working at short wavelengths. This means that the CellaTemp® PK 29 can be used for a wide variety of applications in the metalworking industry and in particular for measuring the temperature of aluminium and bare metals at low temperatures. Due to the blocking filter, it can also be used for measurements in processes in which diode, Nd:YAG or CO2 lasers are used for heating. The energetically high laser radiation does not influence the measurement. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:

Measuring range 150 to 800 °C
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
2 x switching outputs PNP open collector
very simple mounting via M30 central thread
large and bright LED display

Pyrometer CellaTemp PK 29

Measuring range		150 - 800 °C 150 - 800 °C
Focus distance		0,3 m 0,3 m

Your selection will affect other settings

Version

BF 1

You can request this article from us
Quantity:

Version	CellaTemp PK 29 BF 1
Measuring range	150 - 800 °C
Focus distance	0,3 m
Shape of the measuring field	round
Measuring principle	one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaTemp PK 29

Technical Data

Measurement parameters

Measuring range	150 - 800 °C
Sensor	Photo diode
Spectral range	1.8 - 2.2 µm
Response time t90	≤ 2 ms (T > 300 °C) ≤ 15 ms (T > 200 °C) ≤ 45 ms (T > 150 °C)
Measurement uncertainty	0.3 % of temp. reading [°C] plus 4.0 K
Repeatability	2 K
Temperature coefficient	0.25 K/K (T < 500 °C) 0.05 %/K (T > 500 °C)
Resolution current output	0.1 K + 0.005 % of selected measuring span
Resolution interface	0.1 K
Resolution display	1 K

Electrical parameters

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Switching output	2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input	10 - 34 V DC (acc. to IEC 61131-2)
Interface	IO-Link V1.1.3
Power supply	18 - 32 V DC
Current consumption	≤ 50 mA at 24 V DC

Features

Display	4-digit LED display red, digit-height 8 mm
Status display	3 x LED
Control elements	3 buttons

General parameters

Connection	M12 thread 5-pin connection (A-coding)
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)

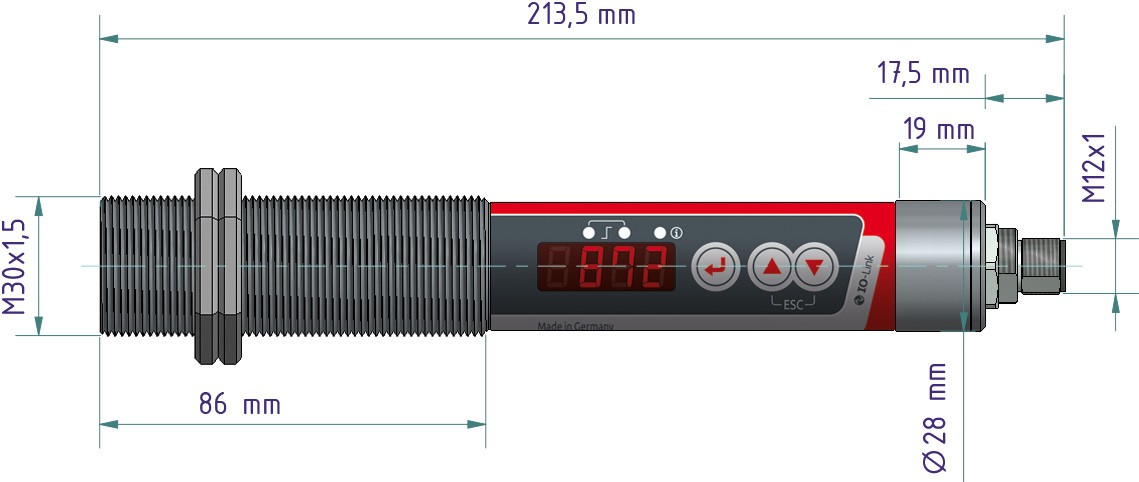

Dimension	Ø 30 x 210 mm (without plug)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.4 kg

Adjustable parameters

Parameters

Analog output 0/4 - 20 mA
Scaling of the analogue output
Emissivity via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal	Signal display at an internal temperature > 75 °C
Service function	Simulation of a measured value
Diagnostic function	Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection	for power supply, analogue output and switching output

Scope of delivery

Infrared thermometer CellaTemp PK
Manual (short)
2 fixing nuts

Pyrometer CellaTemp PK 29

Downloads

Brochure CellaTemp PK PKF PKL

Brochure Flyer IO-Link

Manual CellaTemp PKx IO-Link

Quick guide CellaTemp PKxx IO-Link

Declaration of conformity Declaration from Conformity PKxy

UKCA Declaration from Conformity PKxy

EAC Deklaration PK-PA-PT

Pyrometer CellaTemp PK 29

IO-Link IODD

Type	Datei	Dateigröße
	IODD PK29AF1_20221222.zip	383 KB	Download

Pyrometer CellaTemp PK 29

IO-Link Manufacturer explanation

Type	Datei	Dateigröße
	MC PK 29 AF 1_202302_en.pdf	100 KB	Download

Pyrometer CellaTemp PK 29

Measuring field calculator

Measuring distance	Measuring field diameter
0.00 mm	21.40 mm
12.00 mm	20.82 mm
24.00 mm	20.25 mm
36.00 mm	19.67 mm
48.00 mm	19.10 mm
60.00 mm	18.52 mm
72.00 mm	17.94 mm
84.00 mm	17.37 mm
96.00 mm	16.79 mm
108.00 mm	16.22 mm
120.00 mm	15.64 mm
132.00 mm	15.06 mm
144.00 mm	14.49 mm
156.00 mm	13.91 mm
168.00 mm	13.34 mm
180.00 mm	12.76 mm
192.00 mm	12.18 mm
204.00 mm	11.61 mm
216.00 mm	11.03 mm
228.00 mm	10.46 mm
240.00 mm	9.88 mm
252.00 mm	9.30 mm
264.00 mm	8.73 mm
276.00 mm	8.15 mm
288.00 mm	7.58 mm
300.00 mm	7.00 mm
