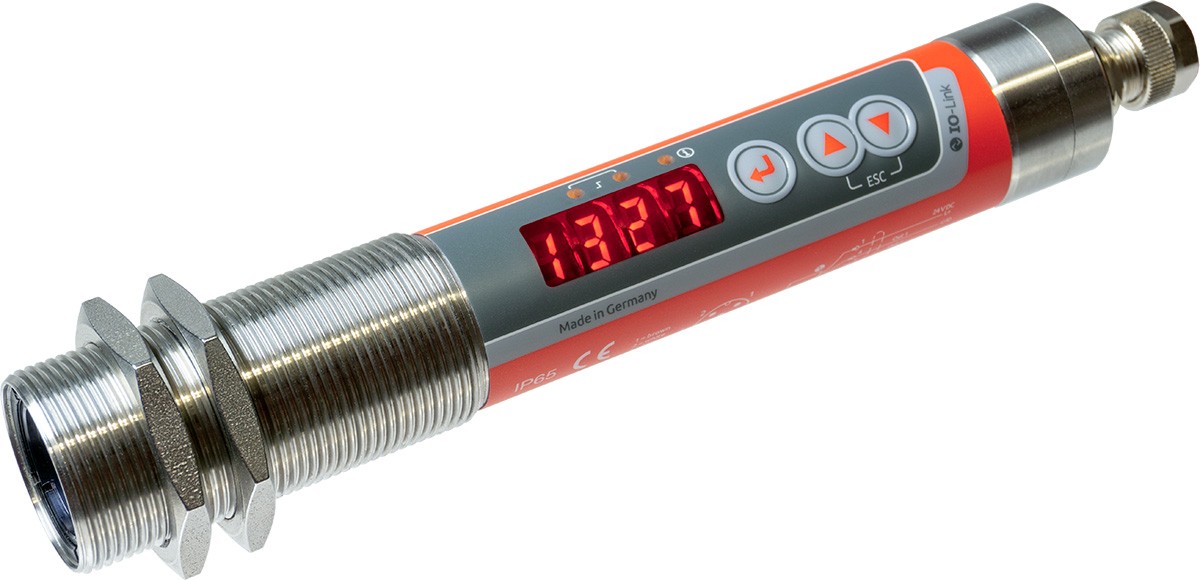

Pyrometer CellaTemp PK 25

Article description

The CellaTemp® PK 25 is equipped with a special blocking filter. As a result, the measurement is not affected by daylight. The infrared thermometer also reacts much less sensitively to reflective interfering radiation in the environment than conventional devices working at short wavelengths. The CellaTemp® PK 25 is used for a wide variety of applications in the metalworking industry and in particular for measuring the temperature of aluminium and bare metals at low temperatures. Due to the blocking filter, it can also be used for measurements in processes in which diode, Nd:YAG or CO2 lasers are used for heating. The energetically high laser radiation does not influence the measurement. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:

Measuring range 75 to 650 °C
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
2 x switching outputs PNP open collector

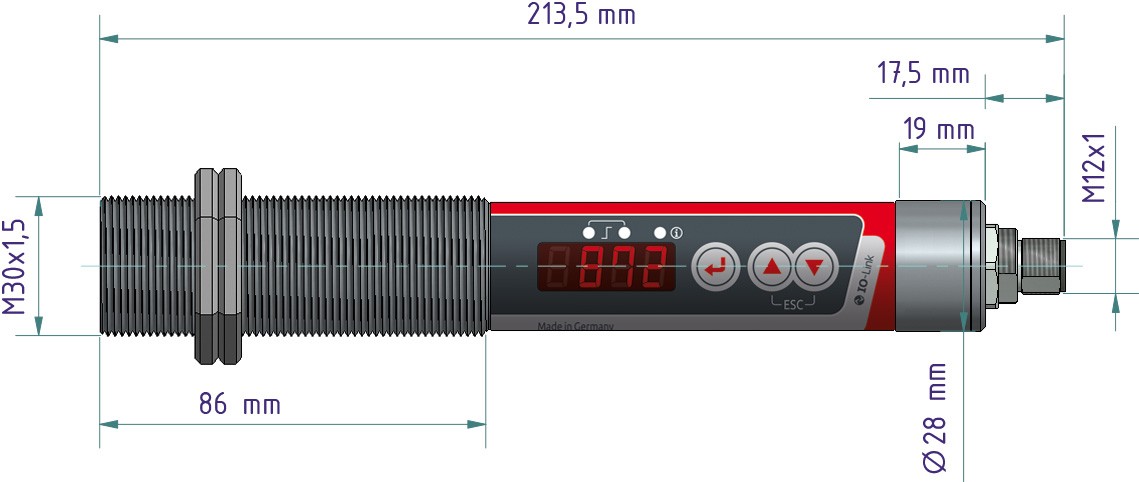

very simple mounting via M30 central thread

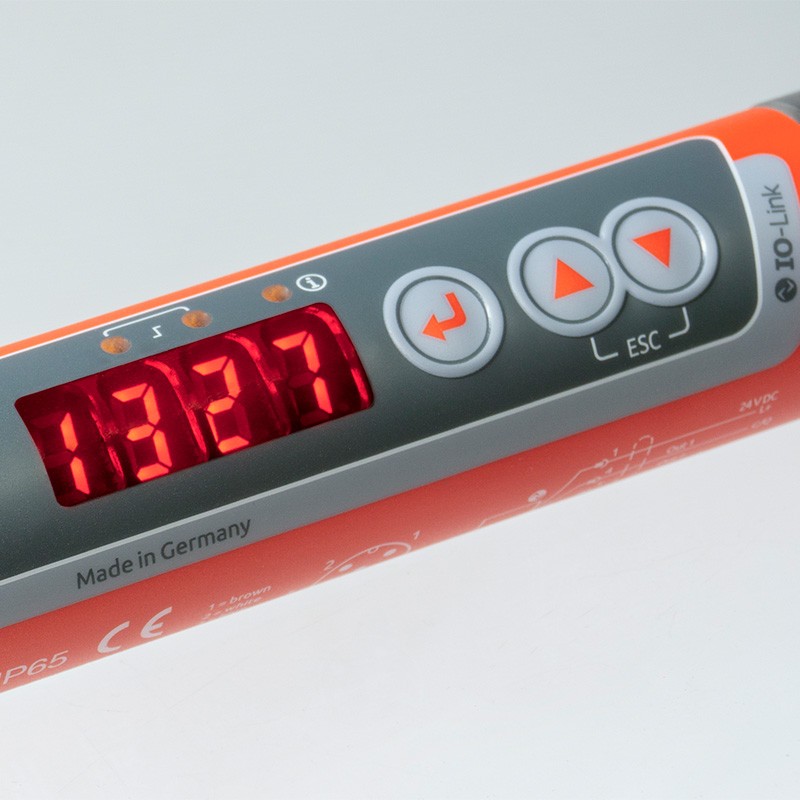

large and bright LED display

Pyrometer CellaTemp PK 25

Measuring range		75 - 650 °C 75 - 650 °C
Focus distance		0,3 m 0,3 m

Your selection will affect other settings

Version

BF 1

You can request this article from us
Quantity:

Version	CellaTemp PK 25 BF 1
Measuring range	75 - 650 °C
Target size	7 mm
Focus distance	0,3 m
Shape of the measuring field	round
Measuring principle	one-colour
