Pyrometer CellaTemp PA 15

Article description

The CellaTemp® PA 15 has a narrow-band filter with a spectral sensitivity of 4.6 ,4.9 µm. It thus detects the temperature from the area near the surface of the glass. Thickness changes or different types of glass do not affect the measured value due to the wavelength. Also, the measurement at the wavelength is not affected by atmospheric influences such as changes in humidity.

Special features:
  • Measuring range 300 to 2,500 °C
  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface



Pyrometer CellaTemp PA 15
Measuring range
Focus distance
Your selection will affect other settings
You can request this article from us

Version CellaTemp PA 15 AF 1
Version CellaTemp PA 15 AF 2
Measuring range 500 - 2500 °C
Measuring range 300 -1300 °C
Focus distance 0,8 m - ∞
Focus distance 0,8 m - ∞
Shape of the measuring field round
Distance ratio 70 : 1
Distance ratio 45 : 1
Objective PZ 15.03
Objective PZ 15.03
Measuring principle one-colour

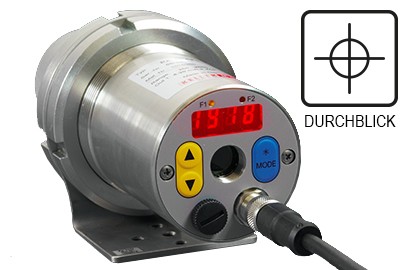

Sighting option Through-the-lens-sighting

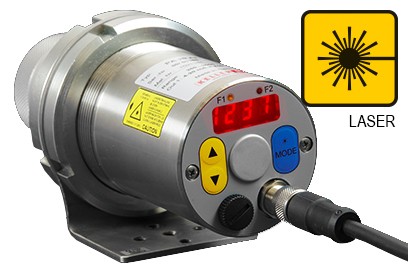

Sighting option Laser pilot light

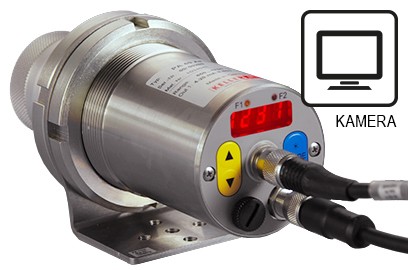

Sighting option Video camera
