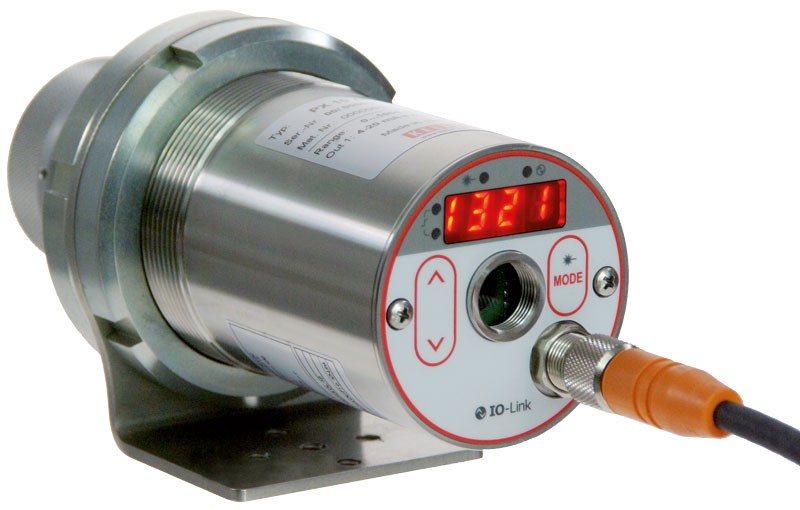

Pyrometer CellaFurnace PX 46

Article description

The CellaFurnace PX 46 has been developed for optical temperature measurement in vacuum or inert gas furnaces with temperatures up to 3200 °C. The pyrometer, which is based on the two-colour measuring principle, is characterized by a very large measuring range with a constant high resolution of < 0.1 K over the entire measuring range. A special signal processing ensures very high measuring accuracy. Therefore, the device fulfils the high requirements for long-term stability necessary for the production process. With the help of the through-the-lens sighting or the video camera, the pyrometer can be precisely aligned to the measuring point.

Special features:

Measuring range 900 to 3200 °C
especially suitable for the measurement in high temperature furnaces
hybrid signal evaluation for high metrological resolution
high long-term stability due to minimal self-heating
focusable lens for exact adjustment of the measuring distance
Narrow field of view enables measurement through small openings in high-temperature applications
standard feature: analogue output and USB/RS 485 interface

Measuring range		900 - 3200 °C 900 - 3200 °C
Focus distance		0,2 - 0,4 m 0,2 - 0,4 m 0,4 m - ∞ 0,6 m - ∞ 1,2 m - ∞
Sighting option		Through-the-lens-sighting Through-the-lens-sighting Laser pilot light Video camera

Version	CellaFurnace PX 46 AF 1
Version	CellaFurnace PX 46 AF 2
Version	CellaFurnace PX 46 AF 3
Version	CellaFurnace PX 46 AF 5
Measuring range	900 - 3200 °C
Measuring range	900 - 3200 °C
Measuring range	900 - 3200 °C
Measuring range	900 - 3200 °C
Focus distance	0,4 m - ∞
Focus distance	0,2 - 0,4 m
Focus distance	1,2 m - ∞
Focus distance	0,6 m - ∞
Shape of the measuring field	round
Distance ratio	210 : 1
Distance ratio	140 : 1
Distance ratio	310 : 1
Distance ratio	430 : 1
Objective	PZ 20.01
Objective	PZ 20.03
Objective	PZ 20.06
Objective	PX 20.06
Measuring principle	two-colour

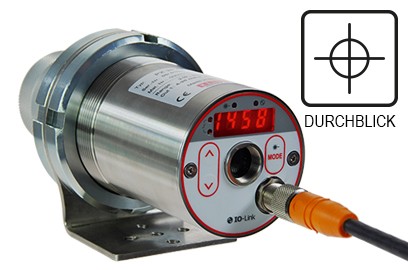

Sighting option	Through-the-lens-sighting

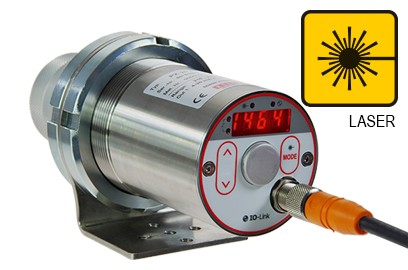

Sighting option	Laser pilot light

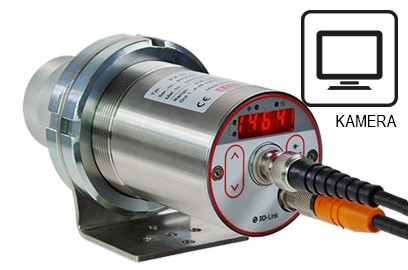

Sighting option	Video camera

Measuring range	900 - 3200 °C
Sensor	Double photo diode
Spectral range	0,9 / 1,05 µm
Response time t98	≤ 10 ms
Measurement uncertainty	900 - 1500 °C: 0,35% vom Messwert [°C] + 2K 1500 - 2400 °C: 0,5% vom Messwert [°C] + 2K 2400 - 3200 °C: 1,0% vom Messwert [°C]
Repeatability	2 K
Temperature coefficient	0.05 %/K
Resolution current output	0.2 K + 0.03 % of selected range
Resolution interface	0.1 K
Resolution display	1 K

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Switching output	2 x Open Collector 24 V DC, ≤ 150 mA
Interface	IO-Link
Power supply	24 V DC +10 % / -20 %
Current consumption	≤ 175 mA for 24 V DC

Sighting option	Through-the-lens-sighting
Sighting option	Laser pilot light
Sighting option	Camera
Display	4-digit LED display red, digit-height 8 mm
Status display	4 x LED
Control elements	3 buttons

Search results

Pyrometer CellaFurnace PX 46

Article description

Request

Connection	M12 thread 5-pin connection
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)
Dimension	Ø 65 mm x 220 mm (max. 277 mm)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.9 kg

Overtemperature signal	Signal display at an internal temperature > 75 °C
Service function	Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function	Automatic temperature detection at discontinuous processes

Datei	Dateigröße
IODD PX46AF1-2-3-5-C_20250226.zip	1305 KB	Download
IODD PX46AF1-2-3-5-L_20250226.zip	1313 KB	Download
IODD PX46AF1-2-3-5_20250226.zip	1302 KB	Download
