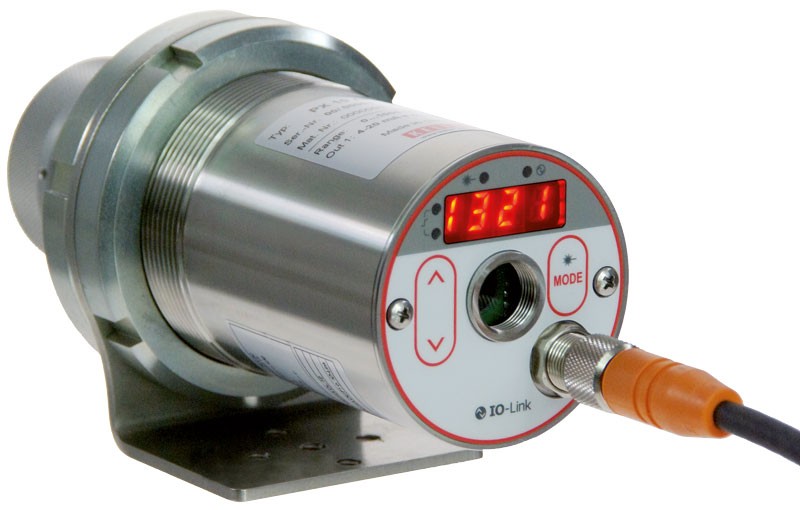

Pyrometer CellaCombustion PX 18

Article description

The CellaCombustion PX 18 measures at a special wavelength at which the chemical components of the hot combustion gas have a high optical density. These devices are used in large combustion plants such as thermal waste disposal plants and coal-fired power plants.

Special features:
  • Measuring range 500 to 2,500 °C
  • modern IO-Link interface
  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display can be read from a great distance
  • test current output for the diagnostic function
  • 1 analogue output and 2 switching outputs
  • source freely configurable

Pyrometer CellaCombustion PX 18
Properties
Version
Measuring range
500 - 2500 °C
Focus distance
0,8 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaCombustion PX 18 AF 1
Measuring range 500 - 2500 °C
Focus distance 0,8 m - ∞
Shape of the measuring field round
Distance ratio 70 : 1
Objective PZ 15.03
Measuring principle one-colour
Sighting option Through-the-lens-sighting
Sighting option Laser pilot light
Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCombustion PX 18

Technical Data

Measurement parameters

Measuring range 500 - 2500 °C
Sensor Thermopile
Spectral range CO range
Response time t98 ≤ 100 ms
Measurement uncertainty 0.75 % of temp. reading [°C], min. 3 K
Repeatability 2 K
Temperature coefficient 0.04 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses Standard-Objektiv PZ 15.03: Fokussierung  0,8 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

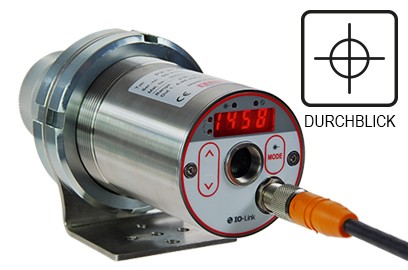

Sighting option Through-the-lens-sighting

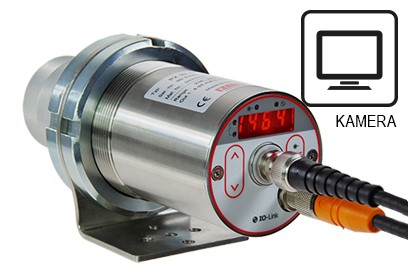

Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F

in addition, for model with camera:
TBC function
White balance
Measuring point number

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
Manual (short)

Pyrometer CellaCombustion PX 18

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCombustion PX 18

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Manual CellaTemp PX 1x 2x 3x
en
Quick guide CellaTemp PX 1x 2x 3x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PX
en

Pyrometer CellaCombustion PX 18

Accessories

Pyrometer CellaCombustion PX 18

IO-Link IODD

Type Datei Dateigröße
IODD PX18AF1_20190328.zip 1732 KB Download
IODD PX18AF1-C_20190328.zip 1736 KB Download
IODD PX18AF1-L_20190328.zip 1744 KB Download

Pyrometer CellaCombustion PX 18

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 18 AF 1 C_20190328_en.pdf 354 KB Download
MC PX 18 AF 1 L_20190328_en.pdf 353 KB Download
MC PX 18 AF 1_20190328_en.pdf 356 KB Download

Pyrometer CellaCombustion PX 18

Measuring field calculator

Pyrometer
  • PX 18 AF 1 (0,8 m - ∞)
PX 18 AF 1 (0,8 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)06412819225632038444851257664070476811.43 mm
Measuring distanceMeasuring field diameter
0.00 mm24.00 mm
32.00 mm23.50 mm
64.00 mm22.99 mm
96.00 mm22.49 mm
128.00 mm21.99 mm
160.00 mm21.49 mm
192.00 mm20.98 mm
224.00 mm20.48 mm
256.00 mm19.98 mm
288.00 mm19.47 mm
320.00 mm18.97 mm
352.00 mm18.47 mm
384.00 mm17.97 mm
416.00 mm17.46 mm
448.00 mm16.96 mm
480.00 mm16.46 mm
512.00 mm15.95 mm
544.00 mm15.45 mm
576.00 mm14.95 mm
608.00 mm14.45 mm
640.00 mm13.94 mm
672.00 mm13.44 mm
704.00 mm12.94 mm
736.00 mm12.43 mm
768.00 mm11.93 mm
800.00 mm11.43 mm
