Pyrometer CellaCombustion PT 118

Article description

The CellaCombustion PT 118 measures at a special wavelength at which the chemical components of the hot combustion gas have a high optical density. These devices are used in large combustion plants such as thermal waste disposal plants and coal-fired power plants.

Special features:
  • Measuring range 500 to 2,500 °C

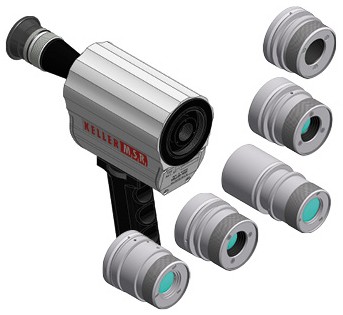

  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display
  • standard feature: USB interface

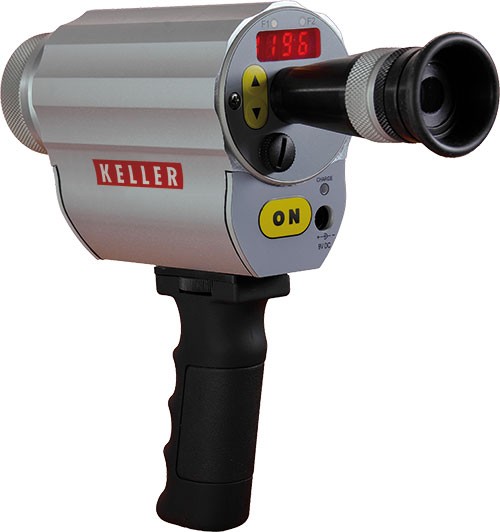

Pyrometer CellaCombustion PT 118
Properties
Version
Measuring range
500 - 2500 °C
Focus distance
0,8 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us

Version CellaCombustion PT 118 AF 1
Measuring range 500 - 2500 °C
Focus distance 0,8 m - ∞
Shape of the measuring field round
Distance ratio 70 : 1
Objective PZ 15.03
Measuring principle one-colour
Sighting option Through-the-lens-sighting

Technical Data Downloads Measuring field calculator Emissivity calculator Application request

Pyrometer CellaCombustion PT 118

Technical Data

Measurement parameters

Measuring range 500 - 2500 °C
Sensor Thermopile
Spectral range CO range
Response time t98 ≤ 100 ms
Measurement uncertainty 0.75 % of temp. reading [°C], min. 3 K
Repeatability 2 K
Temperature coefficient 0.04 %/K
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses Standard-Objektiv PZ 15.03: Fokussierung  0,8 m - ∞

Electrical parameters

Interface USB
Power supply Rechargeable battery pack
Battery life: approx. 15 hours (based on continuous operation at Ta=23 °C)

Features

Sighting option Through-the-lens-sighting
Display 4-digit LED display red, digit-height 8 mm
Status display 2 x LED external
3 x LED internal
Control elements 3 buttons

General parameters

Ambient temperature 0 - 50 °C
Storage temperature -20 - +60 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 197 mm (plus lens length)
Housing Aluminium
Protection class IP 40 acc. to DIN 40050
Weight approx. 1.1 kg

Adjustable parameters

Parameters Emissivity
Locations of the emissivity tables
Transmittance
Compensation of the reflected ambient radiation
Smoothing filter
Operation mode and hold time of the data memory
Parameters of the ATD function
Linearization function
Status display of the LEDs
Temperature unit °C/°F
Automatic shutdown

Functions

ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaCombustion PT
Protective and carrying case
Charger
USB cable VK 11/D (1.8 m)
Software CellaView
Manual (short)

Software

Software CellaView

Pyrometer CellaCombustion PT 118

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCombustion PT 118

Downloads

Brochure CellaPort PT
en
Brochure CellaView
en
Application report CellaCombustion
en
Manual CellaPort PT 11x 12x 13
en
Quick guide CellaPort PT 11x 12x 13x
en
UKCA Declaration from Conformity PT1xx
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaCombustion PT 118

Accessories

Wir haben leider kein passendes Zubehör gefunden.

Pyrometer CellaCombustion PT 118

IO-Link IODD

Pyrometer CellaCombustion PT 118

IO-Link Manufacturer explanation

Pyrometer CellaCombustion PT 118

Measuring field calculator

Pyrometer
  • PT 118 AF 1 (0,8 m - ∞)
PT 118 AF 1 (0,8 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)06412819225632038444851257664070476811.43 mm
Measuring distanceMeasuring field diameter
0.00 mm24.00 mm
32.00 mm23.50 mm
64.00 mm22.99 mm
96.00 mm22.49 mm
128.00 mm21.99 mm
160.00 mm21.49 mm
192.00 mm20.98 mm
224.00 mm20.48 mm
256.00 mm19.98 mm
288.00 mm19.47 mm
320.00 mm18.97 mm
352.00 mm18.47 mm
384.00 mm17.97 mm
416.00 mm17.46 mm
448.00 mm16.96 mm
480.00 mm16.46 mm
512.00 mm15.95 mm
544.00 mm15.45 mm
576.00 mm14.95 mm
608.00 mm14.45 mm
640.00 mm13.94 mm
672.00 mm13.44 mm
704.00 mm12.94 mm
736.00 mm12.43 mm
768.00 mm11.93 mm
800.00 mm11.43 mm
