Pyrometer CellaTemp PA 60

Article description

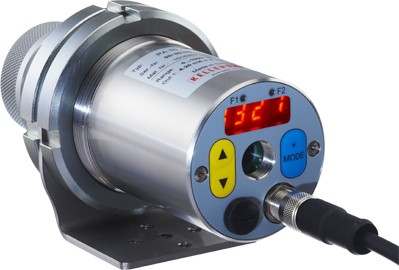

The CellaTemp® PA 60 is a digital two-colour pyrometer for measuring temperatures from 300 to 800 °C. Due to the two-colour measuring method, this device reacts less sensitively to interferences from dust in the field of view, dirty protective windows or changing measuring surfaces than a single-colour pyrometer. A through-the-lens sighting, a laser pilot light or a camera module is available for easy and precise sighting of the measuring object.

Special features:

Measuring range 300 to 800 °C
focusable interchangeable lenses for exact adjustment of the measuring distance
broadband anti-reflective precision lenses
LED display can be read from a great distance
test current output for the diagnostic function
standard feature: analogue output and USB/RS 485 interface

This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.

Features of video camera

Pyrometer CellaTemp PA 60

Measuring range		300 - 800 °C 300 - 800 °C 400 - 1000 °C
Focus distance		0,3 m - ∞ 0,3 m - ∞ 0,4 m - ∞

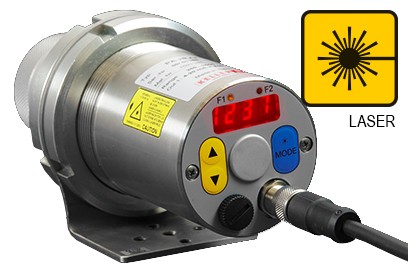

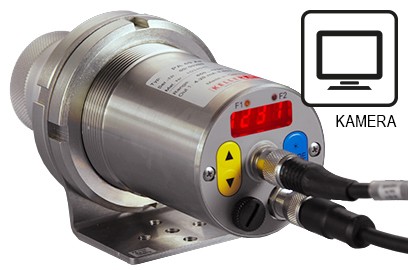

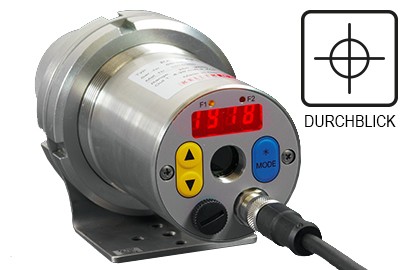

Sighting option		Through-the-lens-sighting Through-the-lens-sighting Laser pilot light Video camera

Your selection will affect other settings

Version
Sighting option

You can request this article from us
Quantity:

Measuring range	300 - 1000 °C in several segments
Sensor	Double photo diode
Spectral range	1.50 / 1.90 μm
Response time t98	≤ 30 ms
Measurement uncertainty	1 % of temp. reading [°C]
Repeatability	2 K
Temperature coefficient	0.05 %/K
Resolution current output	0.2 K + 0.03 % of selected range
Resolution interface	0.1 K
Resolution display	1 K

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Analog input	0 - 10 V
Switching output	2 x Open Collector 24 V DC, ≤ 30 mA
Switching input	2 x to 24 V
Interface	USB
Interface	RS 485
Power supply	24 V DC +10 % / -20 %
Current consumption	≤ 175 mA for 24 V DC

Sighting option	Through-the-lens-sighting
Sighting option	Laser pilot light
Sighting option	Camera
Display	4-digit LED display red, digit-height 8 mm
Status display	2 x LED
Control elements	3 buttons

Connection	M12 thread 8-pin connection
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)
Dimension	Ø 65 mm x 220 mm (max. 277 mm)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.9 kg

Overtemperature signal	if the internal temperature exceeds 80 °C the analogue output shows a value > 20.5 mA
Service function	Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function	Automatic temperature detection at discontinuous processes

Version	CellaTemp PA 60 AF 1
Version	CellaTemp PA 60 AF 11
Measuring range	300 - 800 °C
Measuring range	400 - 1000 °C
Focus distance	0,3 m - ∞
Focus distance	0,4 m - ∞
Shape of the measuring field	round
Distance ratio	39 : 1
Distance ratio	80 : 1
Objective	PZ 20.08
Objective	PZ 20.01
Measuring principle	two-colour
Sighting option	Through-the-lens-sighting
Sighting option	Laser pilot light
Sighting option	Video camera

Measuring distance	Measuring field diameter
0.00 mm	24.50 mm
12.00 mm	23.83 mm
24.00 mm	23.16 mm
36.00 mm	22.48 mm
48.00 mm	21.81 mm
60.00 mm	21.14 mm
72.00 mm	20.47 mm
84.00 mm	19.79 mm
96.00 mm	19.12 mm
108.00 mm	18.45 mm
120.00 mm	17.78 mm
132.00 mm	17.10 mm
144.00 mm	16.43 mm
156.00 mm	15.76 mm
168.00 mm	15.09 mm
180.00 mm	14.42 mm
192.00 mm	13.74 mm
204.00 mm	13.07 mm
216.00 mm	12.40 mm
228.00 mm	11.73 mm
240.00 mm	11.05 mm
252.00 mm	10.38 mm
264.00 mm	9.71 mm
276.00 mm	9.04 mm
288.00 mm	8.36 mm
300.00 mm	7.69 mm
