Pyrometer CellaTemp PA 13

Article description

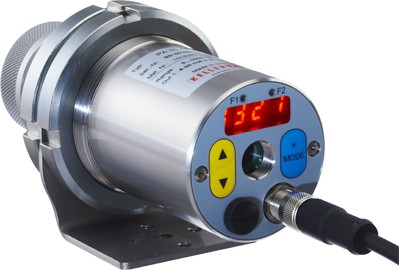

The CellaTemp® PA 13 series is a compact digital pyrometer for non-contact temperature measurement in flame-heated furnaces. Due to the selective spectral range, water vapour and CO2 in the pyrometer's field of view have no influence on the measurement results, even from great measuring distances. A through-the-lens sighting or a laser pilot light is available for easy and precise sighting of the measuring object. The LED display on the back can be read from a great distance. In normal operation, the current measuring temperature is displayed.

Special features:

Measuring range 500 to 1,600 °C
focusable lenses for exact adjustment of the measuring distance
broadband anti-reflective precision lens
LED display can be read from a great distance
test current output for the diagnostic function
standard feature: digital input/output as well as two analogue outputs and USB/RS 485 interface

This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.

Application Solution for combution plants

Pyrometer CellaTemp PA 13

Measuring range		500 -1600 °C 500 -1600 °C
Focus distance		0,8 m - ∞ 0,8 m - ∞

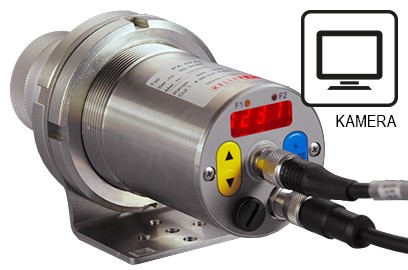

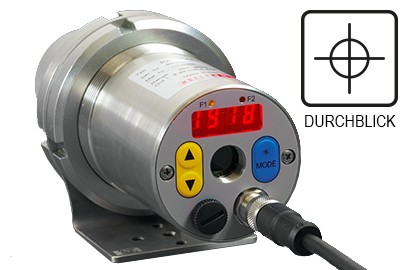

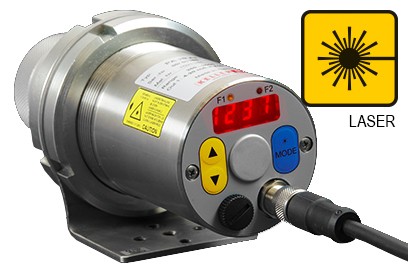

Sighting option		Through-the-lens-sighting Through-the-lens-sighting Laser pilot light Video camera

Your selection will affect other settings

Version		AF 1
Sighting option

You can request this article from us
Quantity:

Measuring range	500 - 1600 °C
Sensor	Thermopile
Spectral range	3.9 µm
Response time t98	≤ 100 ms
Measurement uncertainty	1 % of temp. reading [°C]
Repeatability	2 K
Temperature coefficient	0.04 %/K
Resolution current output	0.2 K + 0.03 % of selected range
Resolution interface	0.1 K
Resolution display	1 K

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Analog input	0 - 10 V
Switching output	2 x Open Collector 24 V DC, ≤ 30 mA
Switching input	2 x to 24 V
Interface	USB
Interface	RS 485
Power supply	24 V DC +10 % / -20 %
Current consumption	≤ 175 mA for 24 V DC

Sighting option	Through-the-lens-sighting
Sighting option	Laser pilot light
Sighting option	Camera
Display	4-digit LED display red, digit-height 8 mm
Status display	2 x LED
Control elements	3 buttons

Connection	M12 thread 8-pin connection
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)
Dimension	Ø 65 mm x 220 mm (max. 277 mm)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.9 kg

Overtemperature signal	if the internal temperature exceeds 80 °C the analogue output shows a value > 20.5 mA
Service function	Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function	Automatic temperature detection at discontinuous processes

Version	CellaTemp PA 13 AF 1
Measuring range	500 -1600 °C
Focus distance	0,8 m - ∞
Shape of the measuring field	round
Distance ratio	45 : 1
Objective	PZ 15.03
Measuring principle	one-colour
Sighting option	Through-the-lens-sighting
Sighting option	Laser pilot light
Sighting option	Video camera

Measuring distance	Measuring field diameter
0.00 mm	24.00 mm
32.00 mm	23.75 mm
64.00 mm	23.50 mm
96.00 mm	23.25 mm
128.00 mm	23.00 mm
160.00 mm	22.76 mm
192.00 mm	22.51 mm
224.00 mm	22.26 mm
256.00 mm	22.01 mm
288.00 mm	21.76 mm
320.00 mm	21.51 mm
352.00 mm	21.26 mm
384.00 mm	21.01 mm
416.00 mm	20.76 mm
448.00 mm	20.52 mm
480.00 mm	20.27 mm
512.00 mm	20.02 mm
544.00 mm	19.77 mm
576.00 mm	19.52 mm
608.00 mm	19.27 mm
640.00 mm	19.02 mm
672.00 mm	18.77 mm
704.00 mm	18.52 mm
736.00 mm	18.28 mm
768.00 mm	18.03 mm
800.00 mm	17.78 mm
