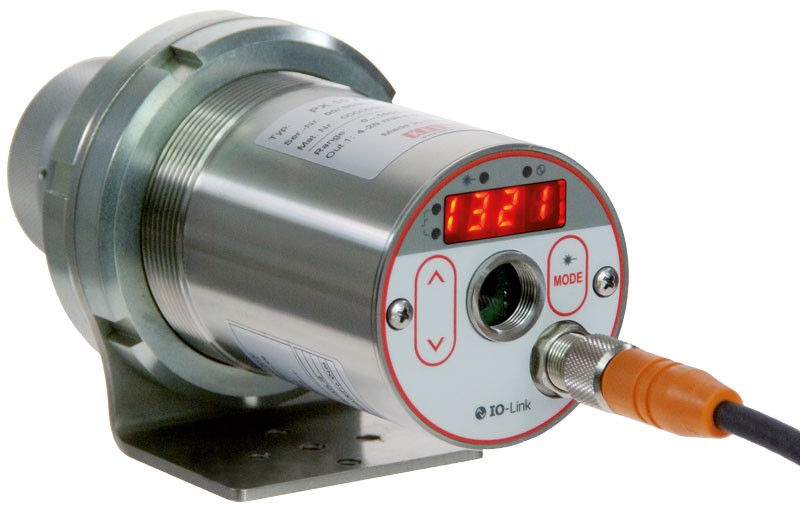

Pyrometer CellaCrystal PX 45

Article description

The CellaCrystal PX 45 has been developed for optical temperature measurement in high-temperature furnaces for crystal growing up to 3200 °C. The pyrometer, which is based on the two-colour measurement principle, is characterised by a very large measuring range with a consistently high resolution of < 0.1 K over the entire measuring range. A special signal processing ensures very high measuring accuracy. Therefore, the device fulfils the high requirements for long-term stability necessary for the production process. With the help of the through-the-lens sighting or the video camera, the pyrometer can be precisely aligned to the measuring point.

Special features:
  • Measuring range 900 to 3200 °C
  • especially suitable for the production of crystals at very high process temperatures
  • hybrid signal evaluation for high metrological resolution
  • high long-term stability due to minimal self-heating
  • focusable lens for exact adjustment of the measuring distance
  • Narrow field of view enables measurement through small openings in high-temperature applications
  • standard feature: analogue output and USB/RS 485 interface
This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.
Features of video camera

Pyrometer CellaCrystal PX 45
Properties
Version
Measuring range
900 - 3200 °C
Focus distance
0,2 - 0,4 m
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us
More information about IO-Link:

Version CellaCrystal PX 45 AF 1
Version CellaCrystal PX 45 AF 2
Version CellaCrystal PX 45 AF 3
Version CellaCrystal PX 45 AF 5
Measuring range 900 - 3200 °C
Measuring range 900 - 3200 °C
Measuring range 900 - 3200 °C
Measuring range 900 - 3200 °C
Focus distance 0,4 m - ∞
Focus distance 0,2 - 0,4 m
Focus distance 1,2 m - ∞
Focus distance 0,6 m - ∞
Shape of the measuring field round
Distance ratio 210 : 1
Distance ratio 200 : 1
Distance ratio 310 : 1
Distance ratio 430 : 1
Objective PZ 20.01
Objective PZ 20.03
Objective PZ 20.06
Objective PX 20.06
Measuring principle two-colour

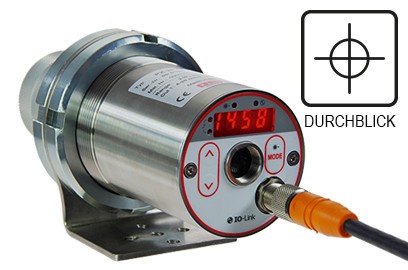

Sighting option Through-the-lens-sighting

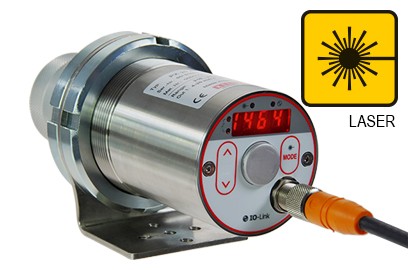

Sighting option Laser pilot light

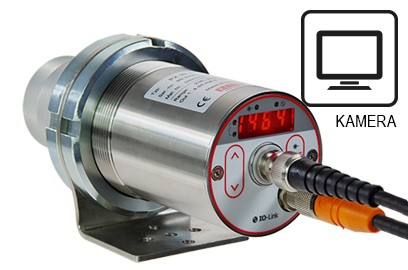

Sighting option Video camera

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCrystal PX 45

Technical Data

ISG Info

1122730 MeS PX xy
1122731 MeS PX xy-L
1121115 MeS PX xy-C

Measurement parameters

Measuring range 900 - 3200 °C
Sensor Double photo diode
Spectral range 0,9 / 1,05 µm
Response time t98 ≤ 10 ms
Measurement uncertainty 900 - 1500 °C: 0,35% vom Messwert [°C] + 2K
1500 - 2400 °C: 0,5% vom Messwert [°C] + 2K
2400 - 3200 °C: 1,0% vom Messwert [°C]
Repeatability 2 K
Temperature coefficient 0.05 %/K
Resolution current output 0.2 K + 0.03 % of selected range
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

Lenses Standard objective lens PZ 20.01: focusing 0.4 m - ∞
Wide-angle lens PZ 20.05: focusing 0.2 m - ∞
Telephoto lens I PZ 20.06: focusing 1.2 m - ∞
Telephoto lens II PA 20.06: focusing 0.6 m - ∞

Electrical parameters

Analog output 0(4) - 20 mA linear, switchable, scalable
Resistance ≤ 500 Ω
Switching output 2 x Open Collector 24 V DC, ≤ 150 mA
Interface IO-Link
Power supply 24 V DC +10 % / -20 %
Current consumption ≤ 175 mA for 24 V DC

Camera

Video output Composite PAL, 1 Vpp, 75 Ω

Features

Sighting option Through-the-lens-sighting
Sighting option Laser pilot light
Sighting option Camera
Display 4-digit LED display red, digit-height 8 mm
Status display 4 x LED
Control elements 3 buttons

General parameters

Connection M12 thread 5-pin connection
Ambient temperature 0 - 65 °C
Storage temperature -20 - +80 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 220 mm (max. 277 mm)
Housing Stainless steel V2A (1.4305)
Protection class IP 65 acc. to DIN 40050
Weight approx. 0.9 kg

Adjustable parameters

Parameters Analog output 0/4 - 20 mA
Scaling of the analogue output
Smoothing filter
Memory operation mode
Hold time of the memory
Emissivity
Transmittance
Compensation of the reflected ambient radiation
Kompensation der Umgebungstemperatur
Limits and operating mode of the alarm contacts
Parameters of the ATD function
Simulation of current and temperature
Temperature unit °C/°F
Measurement channel two-colour, single-colour 1 and single-colour 2
Threshold level of the contamination monitoring

in addition, for model with camera:
TBC function
White balance
Measuring point number

Functions

Overtemperature signal Signal display at an internal temperature > 75 °C
Service function Simulation of a measured value or a current signal
ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaTemp PX
Connection cable VK 02/L AF 1 (5 m)
Video cable VK 02/F (5 m) for model with built-in camera
Manual (short)

Pyrometer CellaCrystal PX 45

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set

Pyrometer CellaCrystal PX 45

Downloads

Brochure CellaTemp PX
en
Brochure Flyer IO-Link
en
Manual CellaTemp PX 4x 5x 6x
en
Quick guide CellaTemp PX 4x 5x 6x
en
Declaration of conformity Declaration from Conformity PXxx
en
UKCA Declaration from Conformity PXxx
en
EAC Deklaration PK-PA-PT
en

Pyrometer CellaCrystal PX 45

Accessories

Pyrometer CellaCrystal PX 45

IO-Link IODD

Type Datei Dateigröße
IODD PX45AF1-2-3-5-C_20241009.zip 1305 KB Download
IODD PX45AF1-2-3-5-L_20241009.zip 1310 KB Download
IODD PX45AF1-2-3-5_20241009.zip 1301 KB Download

Pyrometer CellaCrystal PX 45

IO-Link Manufacturer explanation

Type Datei Dateigröße
MC PX 45 AF 1 2 3 5 L_20241010.pdf 123 KB Download
MC PX 45 AF 1 2 3 5 C_20241010.pdf 123 KB Download
MC PX 45 AF 1 2 3 5_20241010.pdf 123 KB Download

Pyrometer CellaCrystal PX 45

Measuring field calculator

Pyrometer
  • PX 45 AF 1 (0,4 m - ∞)
  • PX 45 AF 2 (0,2 - 0,4 m)
  • PX 45 AF 3 (1,2 m - ∞)
  • PX 45 AF 5 (0,6 m - ∞)
PX 45 AF 1 (0,4 m - ∞)
Focus distance
mm
Graphic length
mm
Measuring distance (mm)03264961281601922242562883203523841.90 mm
Measuring distanceMeasuring field diameter
0.00 mm7.50 mm
16.00 mm7.28 mm
32.00 mm7.05 mm
48.00 mm6.83 mm
64.00 mm6.60 mm
80.00 mm6.38 mm
96.00 mm6.16 mm
112.00 mm5.93 mm
128.00 mm5.71 mm
144.00 mm5.49 mm
160.00 mm5.26 mm
176.00 mm5.04 mm
192.00 mm4.81 mm
208.00 mm4.59 mm
224.00 mm4.37 mm
240.00 mm4.14 mm
256.00 mm3.92 mm
272.00 mm3.70 mm
288.00 mm3.47 mm
304.00 mm3.25 mm
320.00 mm3.02 mm
336.00 mm2.80 mm
352.00 mm2.58 mm
368.00 mm2.35 mm
384.00 mm2.13 mm
400.00 mm1.90 mm
