Pyrometer CellaCombustion PT 117

Article description

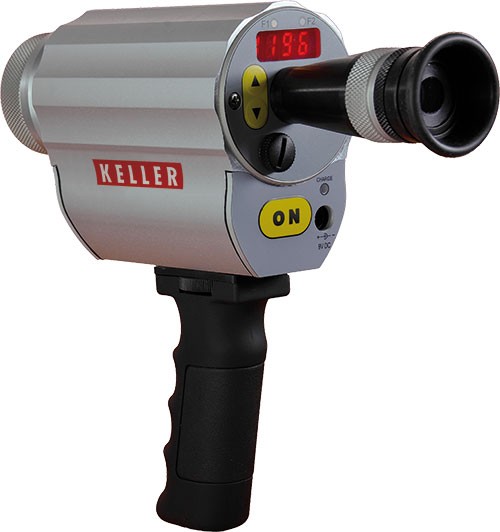

The CellaCombustion PT 117 carries out the measurement at a specific wavelength at which hot, carbonaceous gases have a high optical density and thus good radiative properties. The infrared thermometer is used to measure the flue gas temperature in gas-fired boilers and small combustion systems.

Special features:
  • Measuring range 400 to 2,000 °C
  • focusable lenses for exact adjustment of the measuring distance
  • broadband anti-reflective precision lens
  • LED display
  • standard feature: USB interface
This video will only be loaded from YouTube once you click the play button. When loading the video, data will be transmitted to YouTube and processed outside of our control. You can find more information in our privacy policy.
Application Solution for combution plants

Pyrometer CellaCombustion PT 117
Properties
Version
Measuring range
400 -2000 °C
Focus distance
0,8 m - ∞
Through-the-lens-sighting
Your selection will affect other settings
You can request this article from us

Version CellaCombustion PT 117 AF 1
Measuring range 400 -2000 °C
Focus distance 0,8 m - ∞
Shape of the measuring field round
Distance ratio 75 : 1
Objective PZ 15.03
Measuring principle one-colour
Sighting option Through-the-lens-sighting

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request

Pyrometer CellaCombustion PT 117

Technical Data

Measurement parameters

Measuring range 400 - 2000 °C
Sensor Thermopile
Spectral range CO2 range
Response time t98 ≤ 100 ms
Measurement uncertainty 0.75 % of temp. reading [°C] + 1 K
Repeatability 2 K
Temperature coefficient 0.04 %/K
Resolution interface 0.1 K
Resolution display 1 K

Optical variants

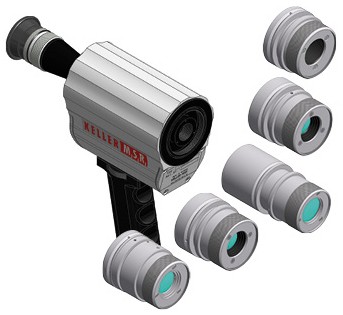

Lenses Standard lens PZ 15.03: focusing 0.8 m - ∞

Electrical parameters

Interface USB
Power supply Rechargeable battery pack
Battery life: approx. 15 hours (based on continuous operation at Ta=23 °C)

Features

Sighting option Through-the-lens-sighting
Display 4-digit LED display red, digit-height 8 mm
Status display 2 x LED external
3 x LED internal
Control elements 3 buttons

General parameters

Ambient temperature 0 - 50 °C
Storage temperature -20 - +60 °C
Permissible humidity 95 % r.H. max. (non-condensing)
Dimension Ø 65 mm x 197 mm (plus lens length)
Housing Aluminium
Protection class IP 40 acc. to DIN 40050
Weight approx. 1.1 kg

Adjustable parameters

Parameters Emissivity
Locations of the emissivity tables
Transmittance
Compensation of the reflected ambient radiation
Smoothing filter
Operation mode and hold time of the data memory
Parameters of the ATD function
Linearization function
Status display of the LEDs
Temperature unit °C/°F
Automatic shutdown

Functions

ATD-(Automatic Temperature Detection) function Automatic temperature detection at discontinuous processes

Scope of delivery

Scope of delivery Pyrometer CellaCombustion PT
Protective and carrying case
Charger
USB cable VK 11/D (1.8 m)
Software CellaView
Manual (short)

Software

Software CellaView

Pyrometer CellaCombustion PT 117

Emissivity calculator

The correct emissivity to be set on the pyrometer is calculated from the measured value displayed on the pyrometer, the true object temperature, the emissivity preset on the pyrometer and the ambient temperature (necessary for some types).
From the true object temperature, the emissivity of the measurement object, the emissivity set on the pyrometer and the ambient temperature (required for types), the measured value calculated by the pyrometer is displayed.
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Emissivity ratio to be set
Ambient temperature
Object temperature
Measured value of the pyrometer
Pyrometer
Quotient
  • Two-colour mode
  • One-colour 1
  • One-colour 2
Preset emissivity
Measured value of the pyrometer
Ambient temperature
Object temperature
Emissivity ratio to be set
