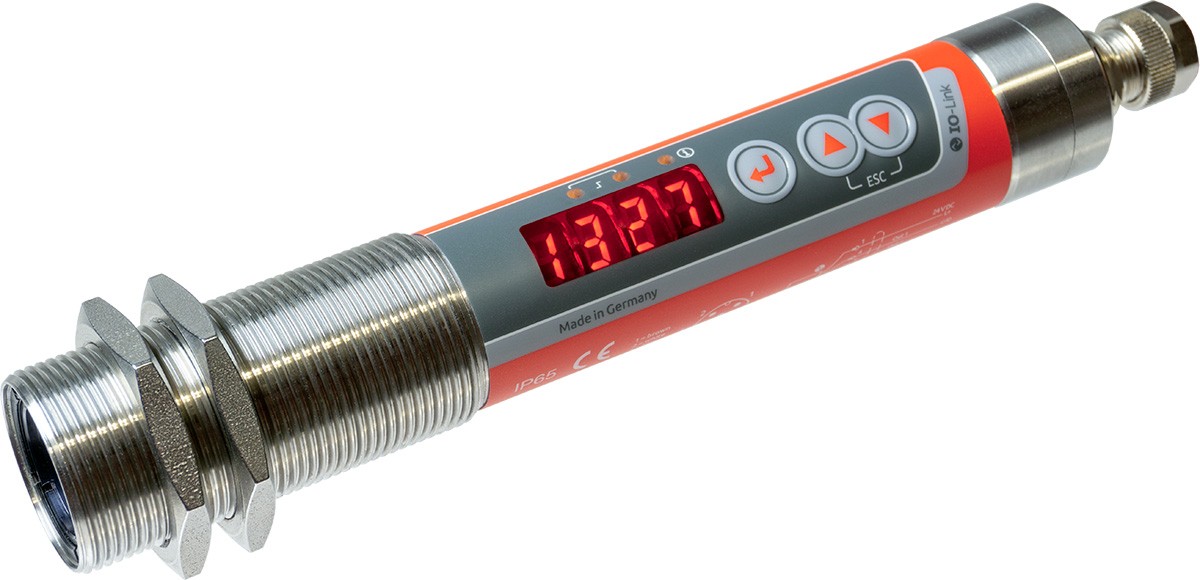

Pyrometer CellaCombustion PK 73

Article description

The CellaCombustion PK 73 measures at a special wavelength at which the chemical components of the hot combustion gas have a high optical density. These devices are used in large combustion plants such as thermal waste disposal plants and coal-fired power plants. The new generation of the CellaTemp® PK pyrometer series is equipped with a smart function, the vitality indicator.
This is a self-monitoring, analysis and reporting technology (SMART), i.e. a function for self-monitoring, analysis and status reporting. The vitality monitor continuously records all relevant operating data. As part of preventive maintenance, this enables the pyrometer to autonomously signal the optimum time for a service check and calibration, depending on the operating conditions.

Special features:

Measuring range 500 to 2,500 °C
small/compact design
switching output universally configurable
high optical resolution due to precision lenses
IO-Link interface
all parameters can be set via pushbutton on the sensor or via interface from the plant control system
2 x switching outputs PNP open collector
very simple mounting via M30 central thread
large and bright LED display

Pyrometer CellaCombustion PK 73

Measuring range		500 - 2500 °C 500 - 2500 °C
Focus distance		0,4 m 0,4 m

Your selection will affect other settings

Version

BF 1

You can request this article from us
Quantity:

Version	CellaCombustion PK 73 BF 1
Measuring range	500 - 2500 °C
Target size	7 mm
Focus distance	0,4 m
Shape of the measuring field	round
Measuring principle	one-colour

Technical Data Downloads Measuring field calculator Accessories Emissivity calculator Application request IO-Link IODD IO-Link Manufacturer explanation

Pyrometer CellaCombustion PK 73

Technical Data

Measurement parameters

Measuring range	500 - 2500 °C
Sensor	Thermopile
Spectral range	CO range
Response time t90	≤ 60 ms
Measurement uncertainty	1 % of temp. reading [°C]
Repeatability	4 K
Temperature coefficient	0.04 %/K
Resolution current output	0.1 K + 0.005 % of selected measuring span
Resolution interface	0.1 K
Resolution display	1 K

Electrical parameters

Analog output	0(4) - 20 mA linear, switchable, scalable
Resistance	≤ 500 Ω
Switching output	2 x PNP Open Collector 24 V DC, 2 x 150 mA max.
Test input	10 - 34 V DC (acc. to IEC 61131-2)
Interface	IO-Link V1.1.3
Power supply	18 - 32 V DC
Current consumption	≤ 50 mA at 24 V DC

Features

Display	4-digit LED display red, digit-height 8 mm
Status display	3 x LED
Control elements	3 buttons

General parameters

Connection	M12 thread 5-pin connection (A-coding)
Ambient temperature	0 - 65 °C
Storage temperature	-20 - +80 °C
Permissible humidity	95 % r.H. max. (non-condensing)

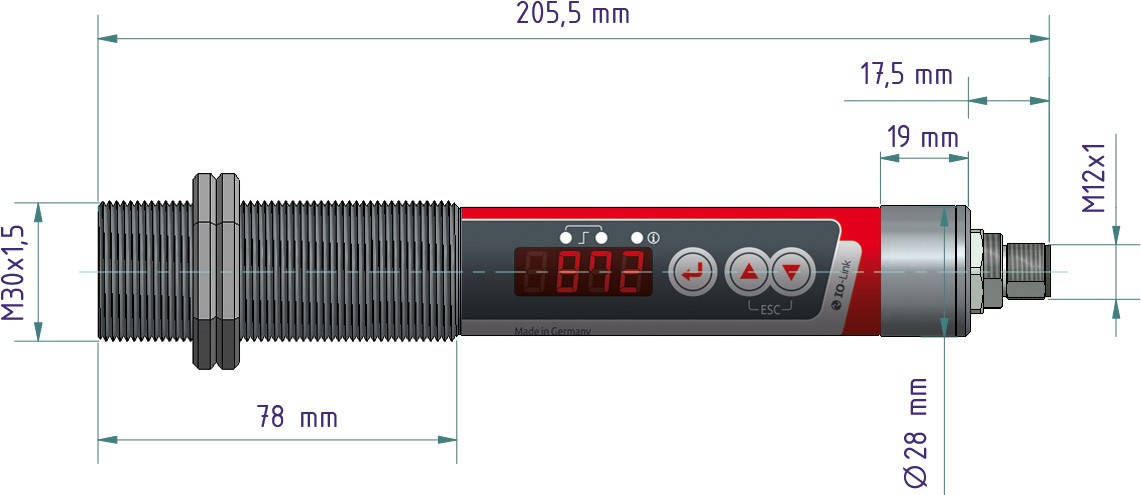

Dimension	Ø 30 x 210 mm (without plug)
Housing	Stainless steel V2A (1.4305)
Protection class	IP 65 acc. to DIN 40050
Weight	approx. 0.4 kg

Adjustable parameters

Parameters

Analog output 0/4 - 20 mA
Scaling of the analogue output
Emissivity via quick adjustment
Transmission of the protective glass
Damping time constant
Hold time of the maximum value memory
Operating mode, source and switching point, switch-on and switch-off delay of the switching contacts
Temperature correction for process-specific influences using interpolation points (X/Y pairs)
Vitality indicator
Service parameters
Reset to factory setting
Key lock
Temperature or ‘run’ shown on the display
Temperature unit °C/°F
Simulation of temperature

Functions

Overtemperature signal	Signal display at an internal temperature > 75 °C
Test function	via button or test input
Service function	Simulation of a measured value
Diagnostic function	Indicates in case of reverse polarity, overload and wrong supply voltage
Reverse polarity protection	for power supply, analogue output and switching output

Scope of delivery

Infrared thermometers CellaCombustion PK
Manual (short)
2 fixing nuts

Pyrometer CellaCombustion PK 73

Downloads

Brochure CellaTemp PK PKF PKL

Brochure Flyer IO-Link

Application report CellaCombustion

Manual CellaCombustion PK

Quick guide CellaTemp PKxx IO-Link

Declaration of conformity Declaration from Conformity PKxy

UKCA Declaration from Conformity PKxy

EAC Deklaration PK-PA-PT

Pyrometer CellaCombustion PK 73

IO-Link IODD

Type	Datei	Dateigröße
	IODD PK73BF1_20230912.zip	2221 KB	Download
	IODD PK73AF1_20180806.zip	383 KB	Download

Pyrometer CellaCombustion PK 73

IO-Link Manufacturer explanation

Type	Datei	Dateigröße
	MC PK 73 BF 1_202312_en.pdf	105 KB	Download
	MC PK 73 AF 1_201808_en.pdf	365 KB	Download

Pyrometer CellaCombustion PK 73

Measuring field calculator

Measuring distance	Measuring field diameter
0.00 mm	18.20 mm
16.00 mm	17.75 mm
32.00 mm	17.30 mm
48.00 mm	16.86 mm
64.00 mm	16.41 mm
80.00 mm	15.96 mm
96.00 mm	15.51 mm
112.00 mm	15.06 mm
128.00 mm	14.62 mm
144.00 mm	14.17 mm
160.00 mm	13.72 mm
176.00 mm	13.27 mm
192.00 mm	12.82 mm
208.00 mm	12.38 mm
224.00 mm	11.93 mm
240.00 mm	11.48 mm
256.00 mm	11.03 mm
272.00 mm	10.58 mm
288.00 mm	10.14 mm
304.00 mm	9.69 mm
320.00 mm	9.24 mm
336.00 mm	8.79 mm
352.00 mm	8.34 mm
368.00 mm	7.90 mm
384.00 mm	7.45 mm
400.00 mm	7.00 mm
